PRODUCT CODE : PFR 30
Sponmech Safety Systems manufacture and supply a large range of Milling Machine Guards to suit virtually all types and sizes of conventional and CNC milling machines both horizontal & vertical including Bridgeport, XYZ, Huron, Cincinnati, Adcock & Shipley, Parkson & BSA. They are fitted with electrical interlock systems.
• The PFR 30 protects operator from direct contact with spindle and airborne debris and coolant from machine.

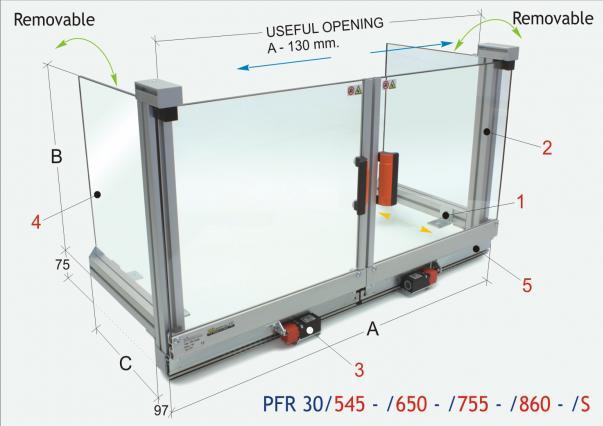

• Guard attaches to the perimeter of the machine table(see point 1 on Diagram).
• Guard comes with two sliding doors set on ball guide enabling full opening, allowing complete access.
•The Door screens are made using top quality polycarbonate ensuring "Shock proof" resistance and excellent visibility.
• The screens can be profiled to suit the equipment in use if needed.
• Comes complete with double safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.
• We can guarantee our "Next generation" standard guards do not disrupt the operators workflow whilst maintaining maximum safety at all times.
• All "Next Generation" Machine guards are in conformance with P.U.W.E.R (1998) and come with a certificate of conformity.
**We also accept telephone orders - all major credit & debit cards accepted**
Sponmech Safety Systems manufacture and supply a large range of Milling Machine Guards to suit virtually all types and sizes of conventional and CNC milling machines both horizontal & vertical including Bridgeport, XYZ, Huron, Cincinnati, Adcock & Shipley, Parkson & BSA. They are fitted with electrical interlock systems.
• The PFR 30 protects operator from direct contact with spindle and airborne debris and coolant from machine.
• Guard attaches to the perimeter of the machine table(see point 1 on Diagram).
• Guard comes with two sliding doors set on ball guide enabling full opening, allowing complete access.
•The Door screens are made using top quality polycarbonate ensuring "Shock proof" resistance and excellent visibility.
• The screens can be profiled to suit the equipment in use if needed.
• Comes complete with double safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.
• We can guarantee our "Next generation" standard guards do not disrupt the operators workflow whilst maintaining maximum safety at all times.
• All "Next Generation" Machine guards are in conformance with P.U.W.E.R (1998) and come with a certificate of conformity.
**We also accept telephone orders - all major credit & debit cards accepted**
| CODE | A | B | C | KG |
|---|---|---|---|---|
| PFR 30/545 | 1000 | 450 | 350 | 15,9 |
| PFR 30/650 | 1200 | 500 | 400 | 18,9 |
| PFR 30/755 | 1400 | 550 | 450 | 23,0 |
| PFR 30/860 | 1600 | 600 | 500 | 25,0 |
Estimated delivery on this item 1-2 weeks from order
Packing and pallet delivery is £80.00 for this guard
