PFR 20

Safety Guard for small mills and similar machines

From £412.00

Multi-adjustable small milling machine guard. The PFR 20 protects the operator from contact with the upper part of the chuck and from coolant spray. Complete with safety micro switch conforming to...

More information

Select Size

Quantity

Total

£412.00 Excl. VAT

Enquire About This Product

We also accept telephone orders. Give Sponmech a call on 0121 585 8730

Product Information Size Guide Delivery

Product Information

Safety Guard for small mills and similar machines Product Information

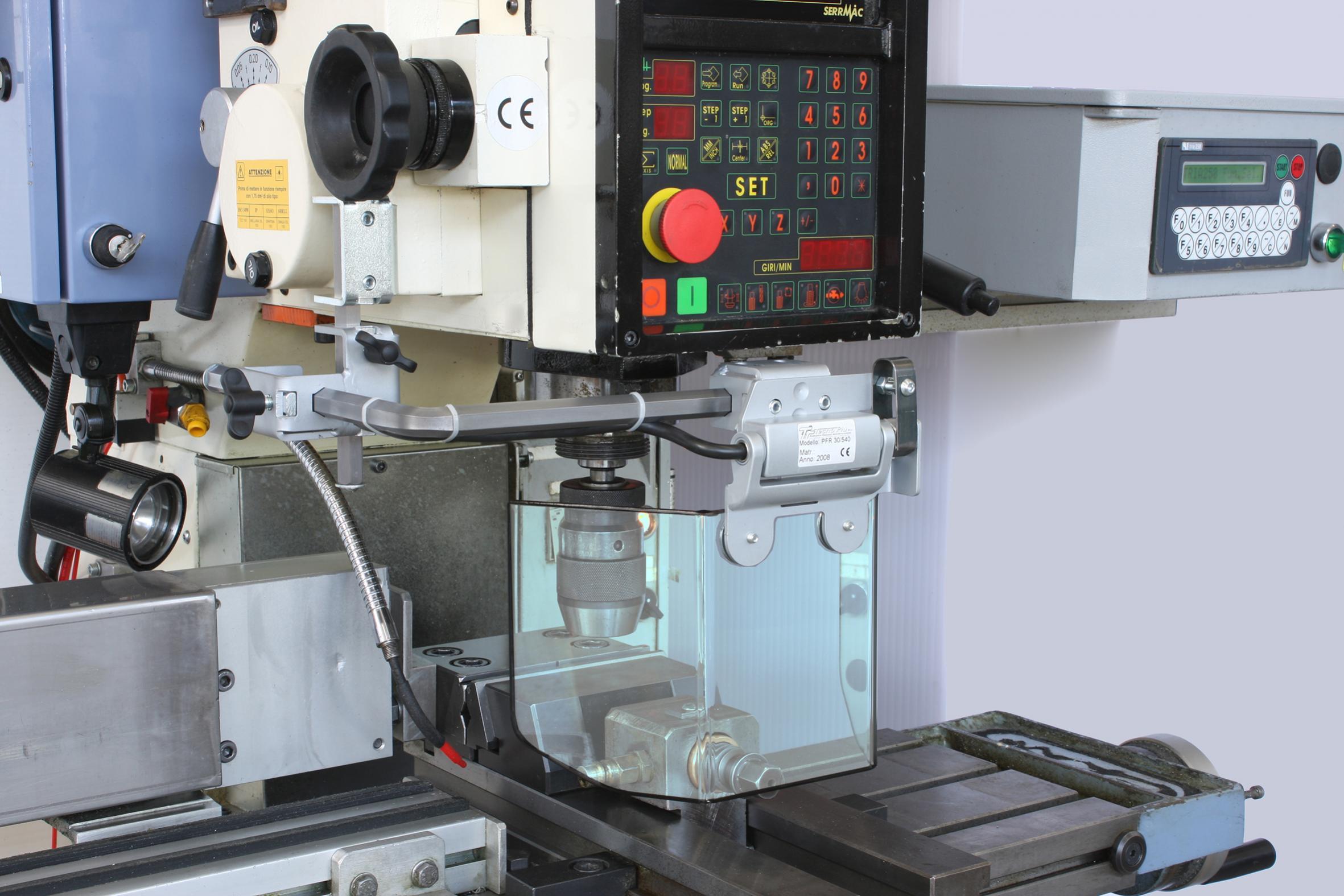

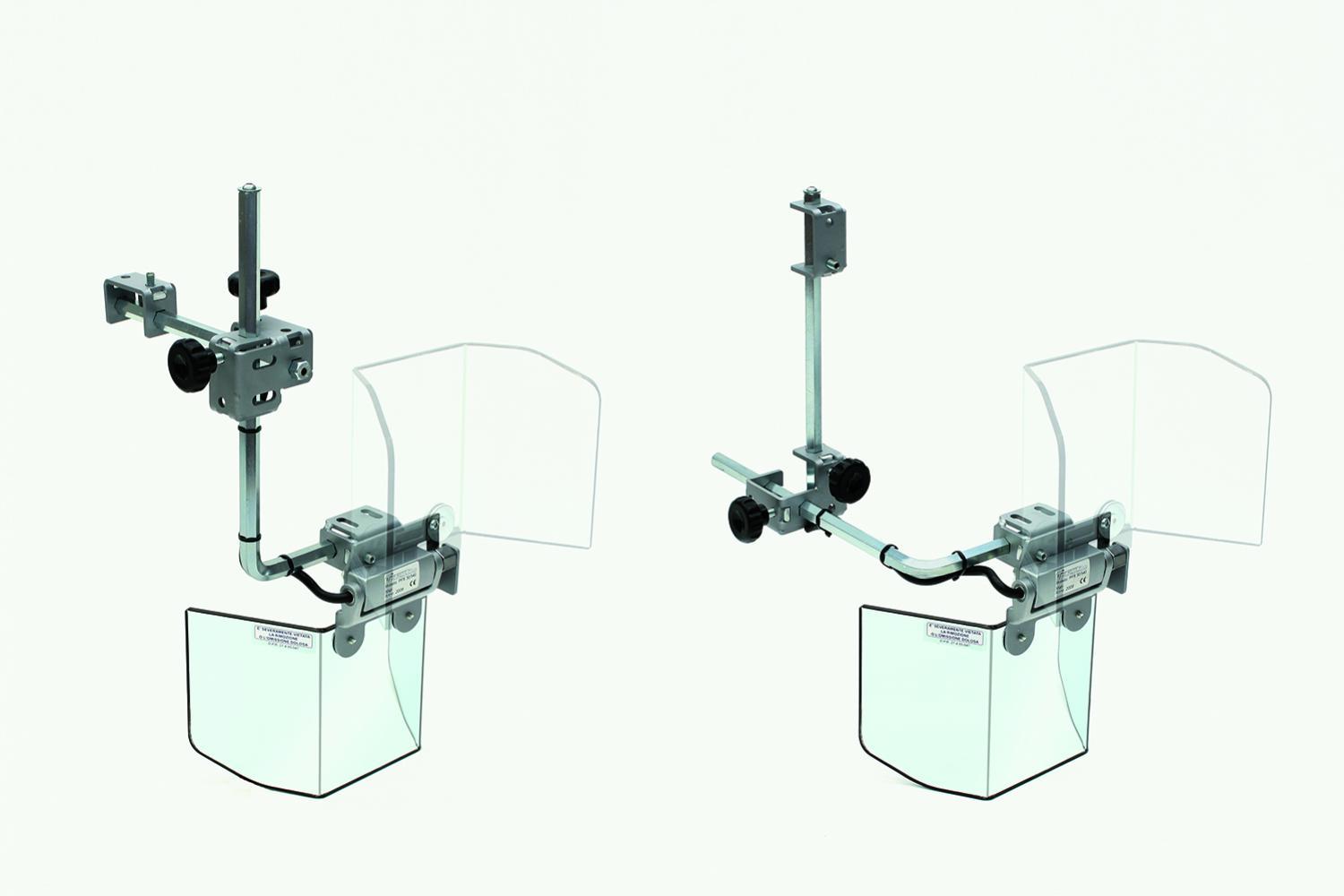

Multi-adjustable small milling machine guard.
The PFR 20 protects the operator from contact with the upper part of the chuck and from coolant spray.
Complete with safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.
We can guarantee our "Next generation" standard machine guards do not disrupt the operators workflow whilst maintaining maximum safety at all times.
All our Machine guards are in conformance with P.U.W.E.R (1998) and come with a certificate of conformity.

Size Guide

Safety Guard for small mills and similar machines Size Guide

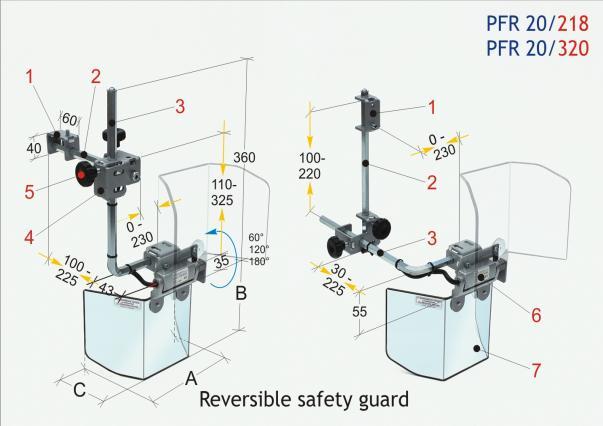

1. Anchorage stirrup in pressed steel

2. Straight support arm in hexagonal steel

3. Angular support arm in hexagonal steel

4. "Cross" clamp for arm adjustment in pressed steel

5. "Cross" clamp adjustment knobs

6. Shield support hinge with intergrated microswitch - n.2 NC contacts

7. Semi-hexagonal shield - in plastic shockproof and oil resistant material

Product Code

PFR 20/218

250

180

110

3,1

PFR 20/320

300

200

125

3,2

Delivery

Safety Guard for small mills and similar machines Delivery Information

Postage & packaging £20.00 (UK mainland only).
Please contact us for a quote for all deliveries outside of mainland UK
Delivery 1-2 weeks.
