Sponmech Safety Systems manufacture and supply a large range of Milling Machine Guards to suit virtually all types and sizes of conventional and CNC milling machines both horizontal & vertical including Bridgeport, XYZ, Huron, Cincinnati, Adcock & Shipley, Parkson & BSA. They are fitted with electrical interlock systems.

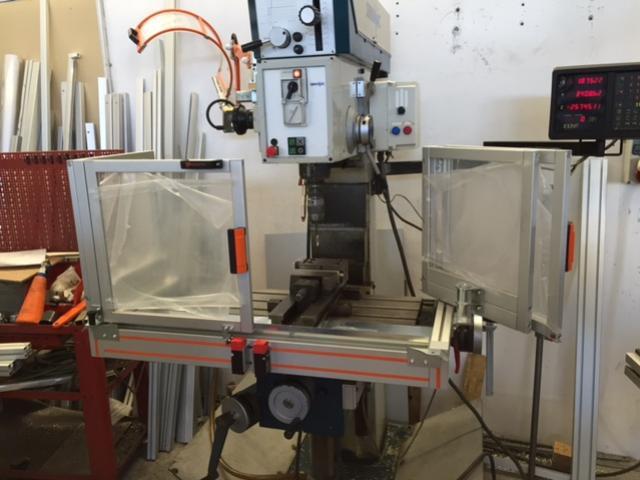

  • The PFR 70 protects the operator from direct contact with rotating parts of the spindle and airborne debris & coolant from the machine.
  • This guard fits to the machine table with T nuts.

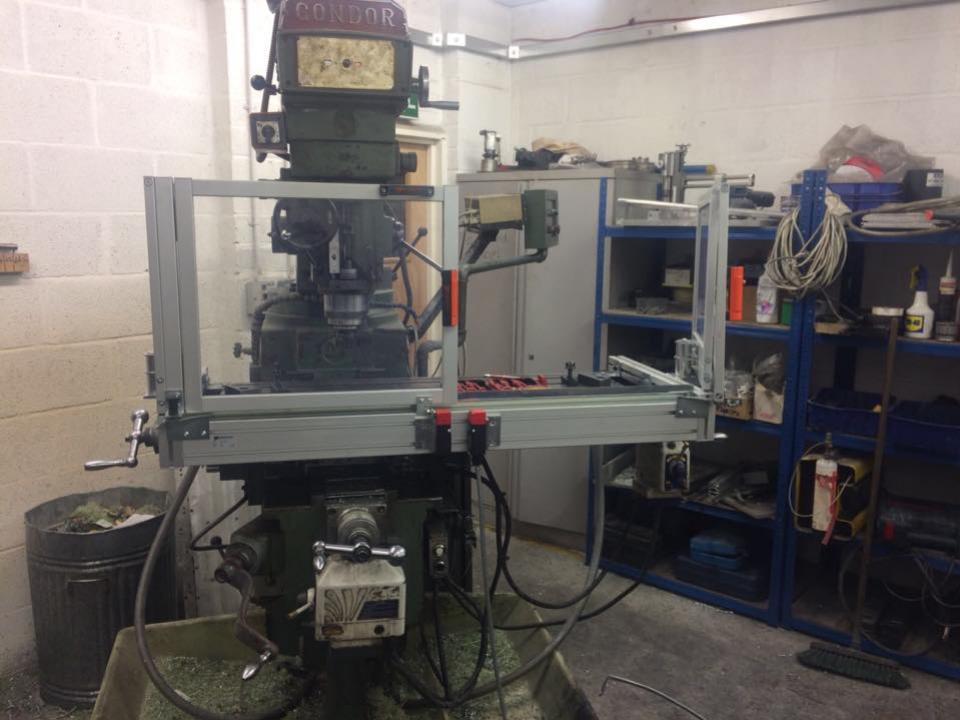

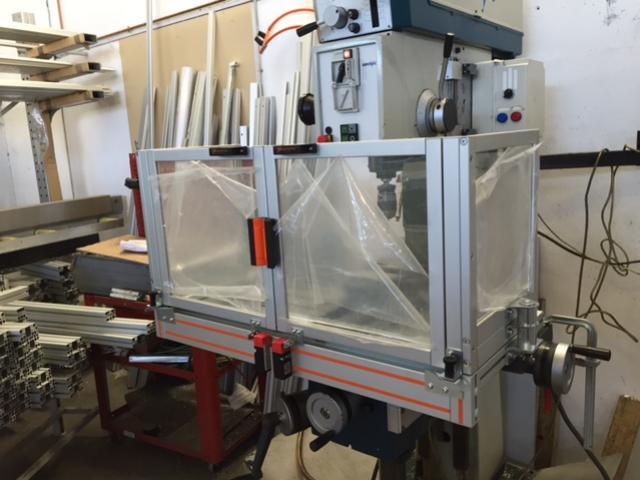

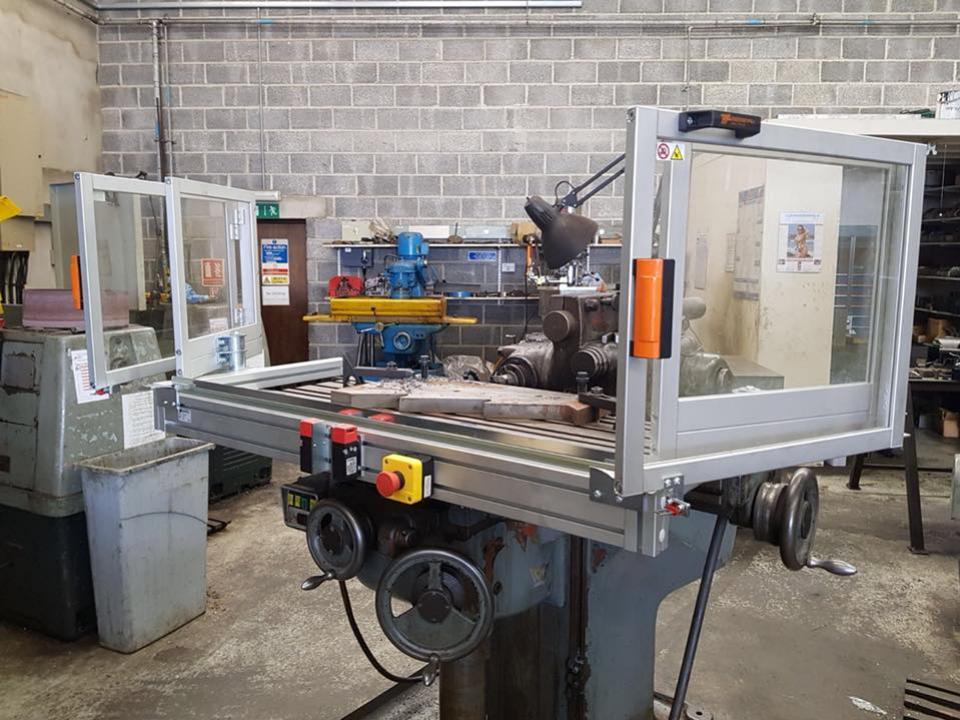

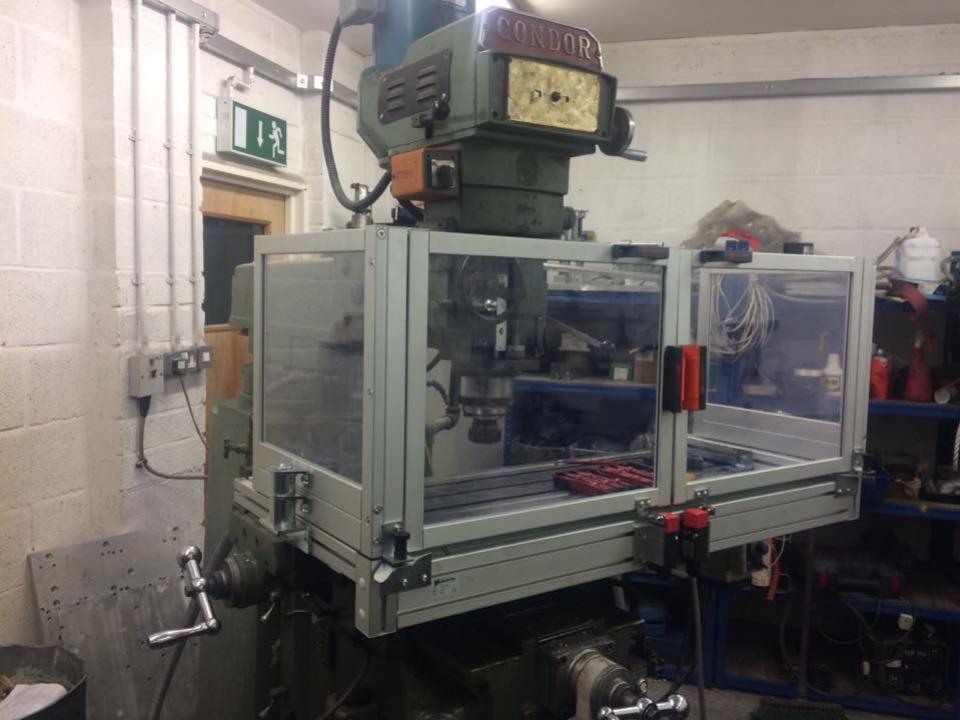

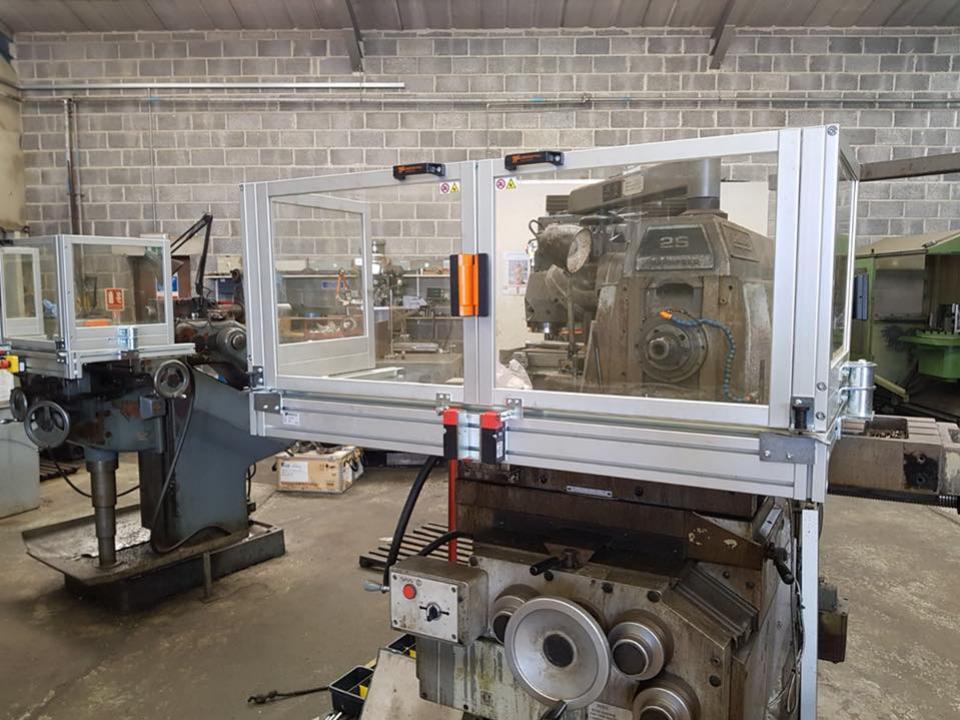

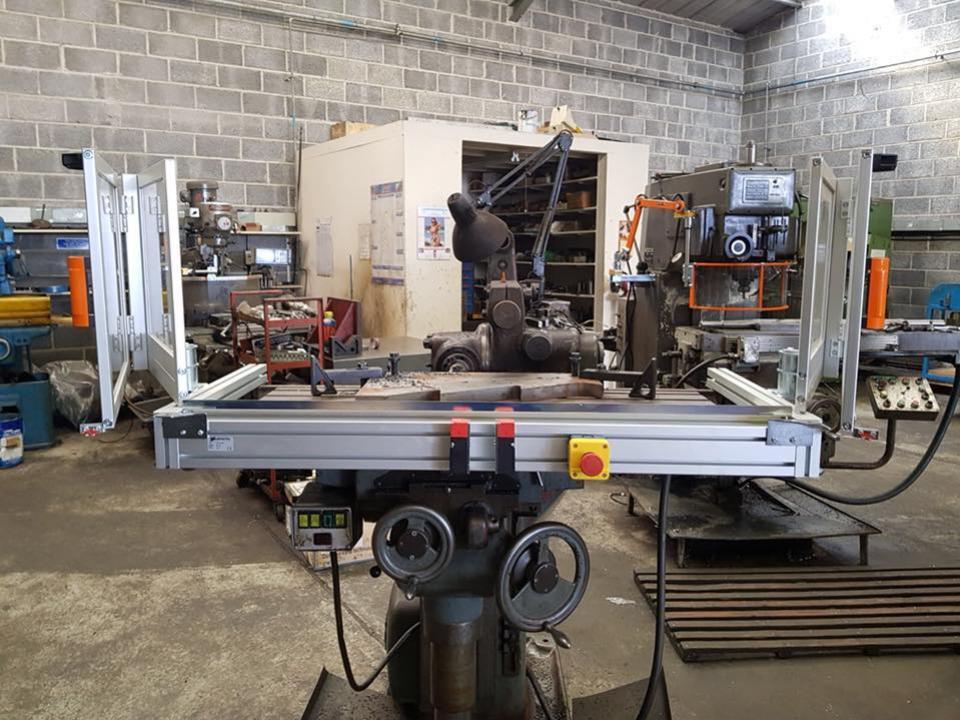

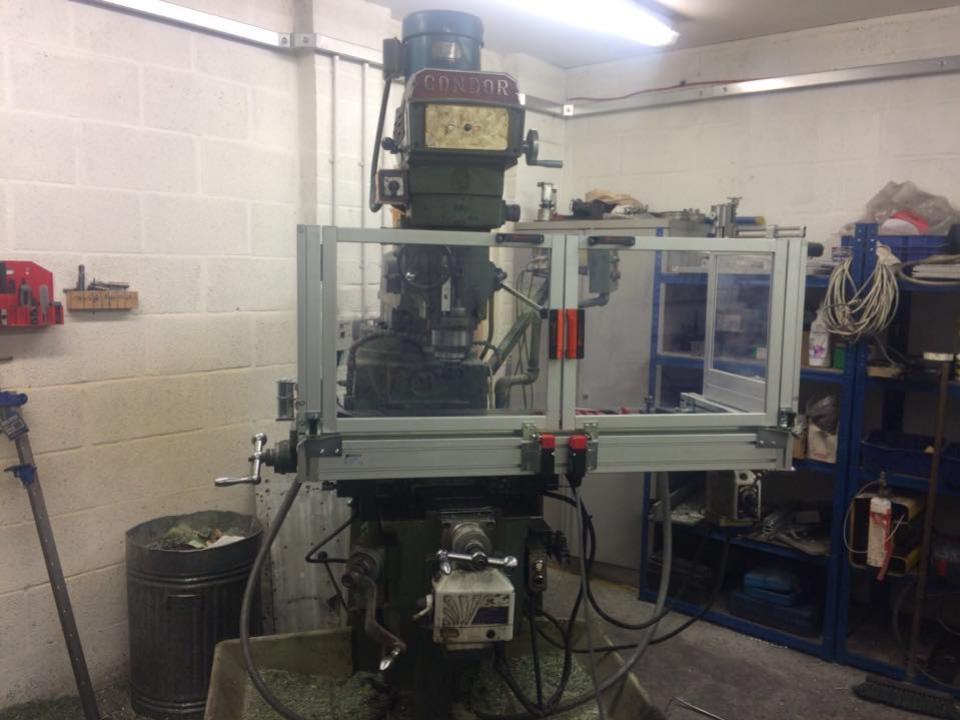

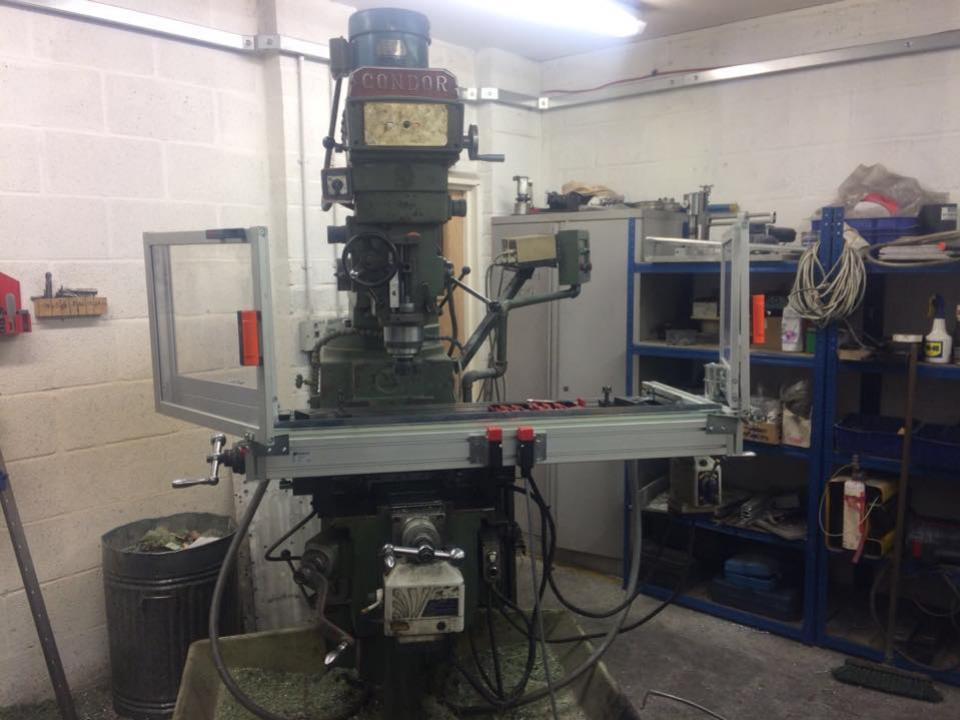

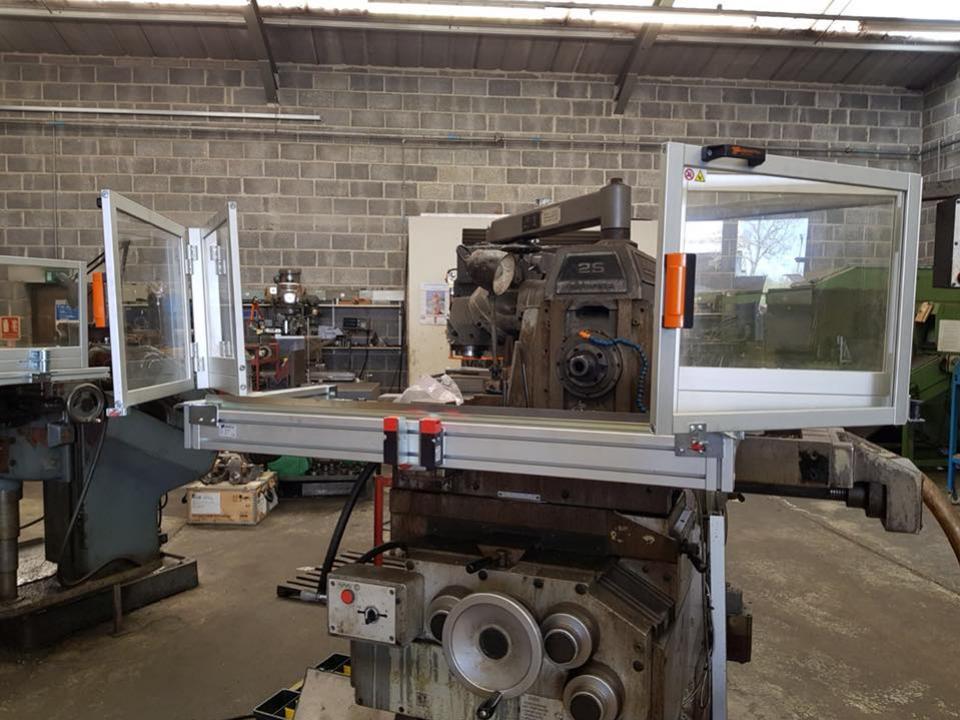

  • The PFR 70 table guard is equipped with  two doors (each with two hinged sections) to completely cover the front and side parts of the working surface, with total opening.
  • The shape of the guard allows the vice to be inside the guard.
  • A steel plate fits under the vice.
  • Comes complete with n.2 safety microswitches.
  • We can guarantee our "Next generation" standard guards do not disrupt the operators workflow whilst maintaining maximum safety at all times.
  • All "Next Generation" Machine guards are in conformance with P.U.W.E.R (1998) and come with a certificate of conformity.
  • Item available 2-3 days from order !



Complimentary Items: PFR 70/545/R - PFR 70/650/R

- Rear adjustable protective panel, to cover the rear side behind the spindle

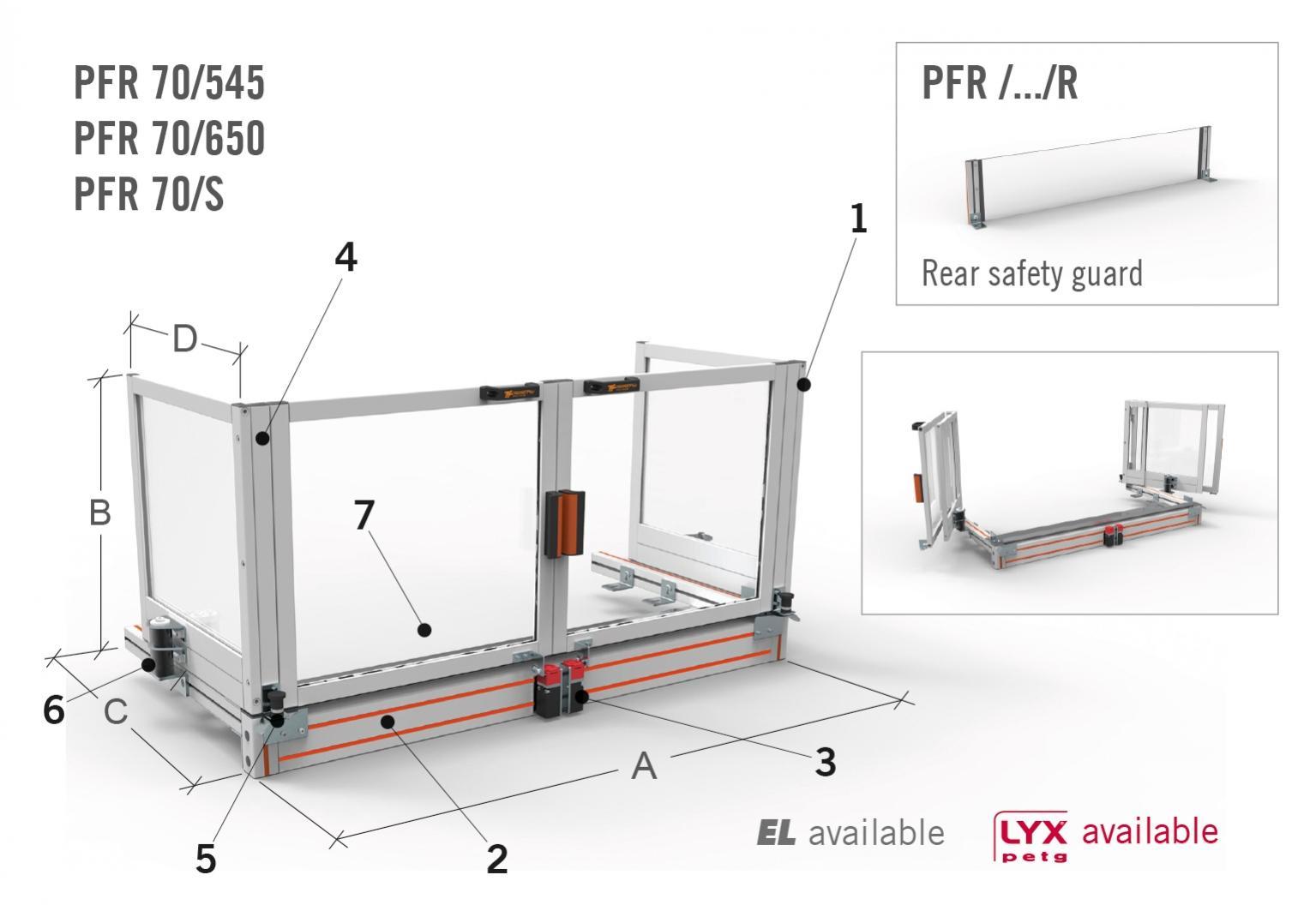

1. Angular anchorage stirrups - in pressed steel

2. Supporting structure - in aluminium profile

3. Safety microswitches with separated actuator - n.2 NC contacts

4. Doors with two hinged sections - in plastic shockproof and oil resistant material

5. Locking piston

6. Rotation door system

7. Protective lower steel plate - in pressed steel


CODE ABCDKG
PFR 70/545 100045050540526,1
PFR 70/650 120050055545530,1
  • Estimated delivery on this item 2-3 days from order
  • Packing and pallet delivery is £50.00 for this guard (UK mainland only)
