Sponmech Safety Systems manufacture and supply a large range of Milling Machine Guards to suit virtually all types and sizes of conventional and CNC milling machines both horizontal & vertical including Bridgeport, XYZ, Huron, Cincinnati, Adcock & Shipley, Parkson & BSA. They are fitted with electrical interlock systems.

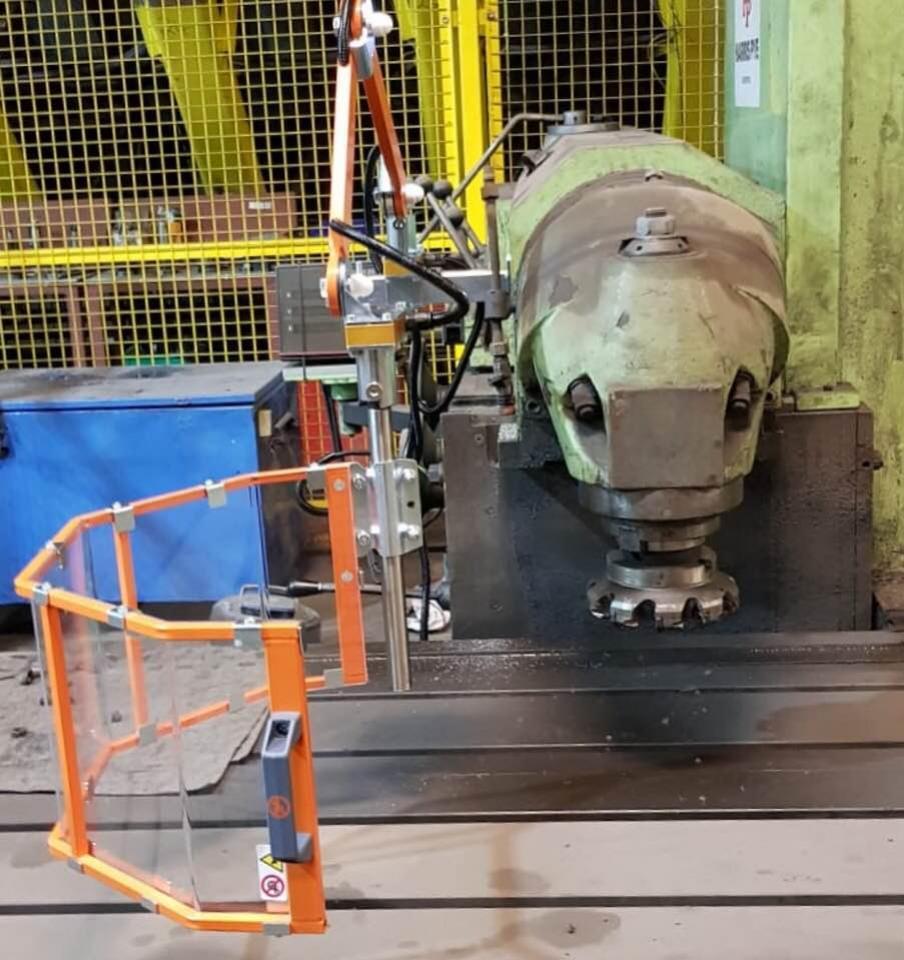

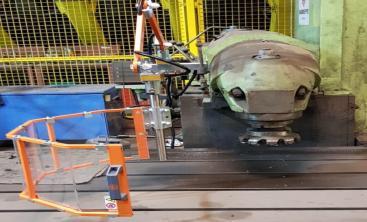

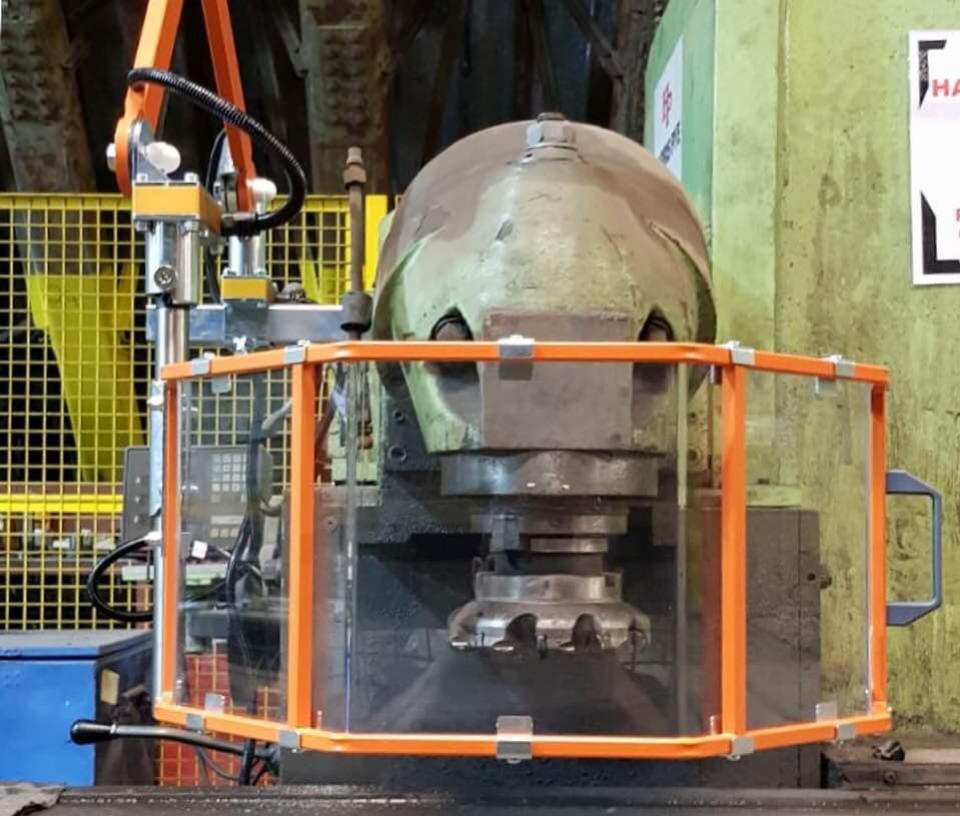

  • The PFR 04 Mill Guard protects the operator from direct contact with rotating parts of the spindle and airborne debris and coolant from machine.

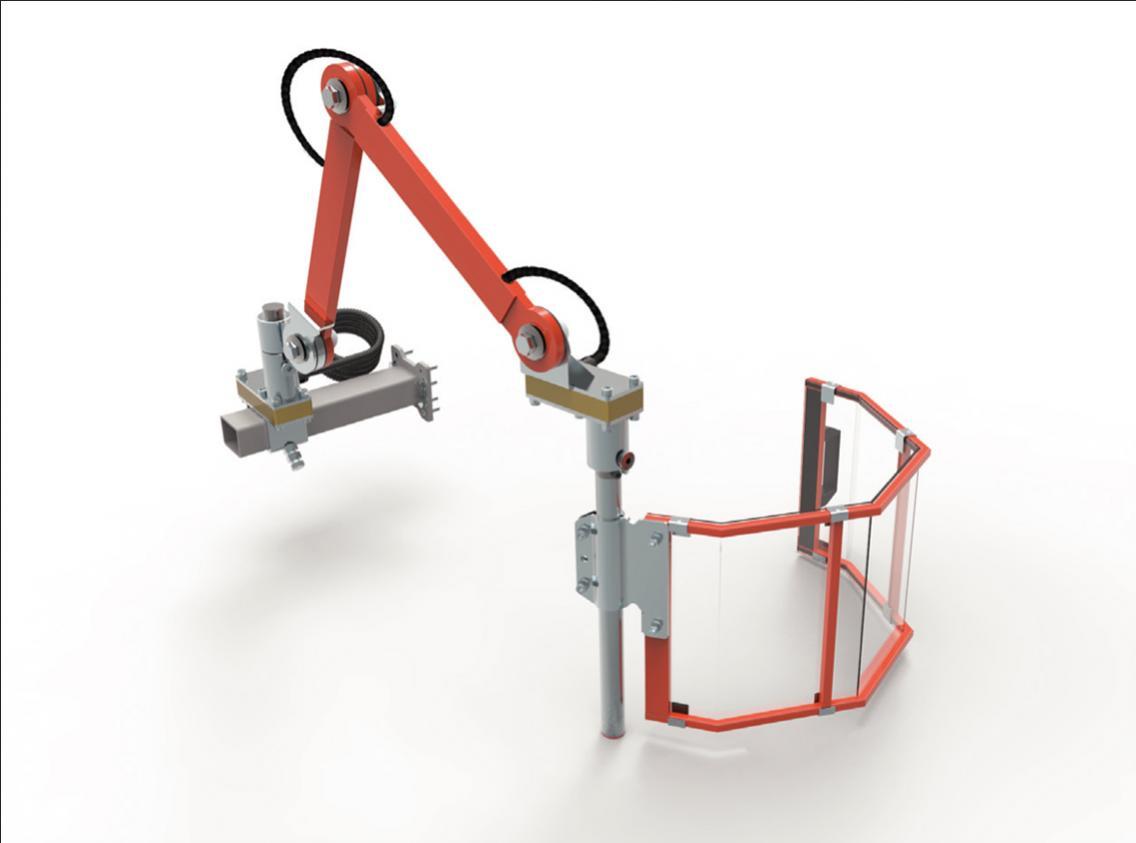

  • The PFR 04 is a universal safety guard with articulated arms. The friction joints make it particularly versatile.

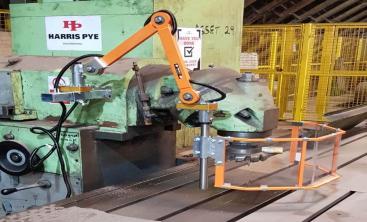

  • The PFR 04 affixes to the side of the machine and is equipped with two points of interlocked movement. 1) Screen Opening. 2) Complete Opening for loading.
  • This milling machine guard comes complete with double safety microswitch.
  • We can guarantee our "Next generation" standard guards do not disrupt the operators workflow whilst maintaining maximum safety at all times.
  • All "Next Generation" Machine guards are in conformance with P.U.W.E.R (1998) and come with a certificate of conformity.

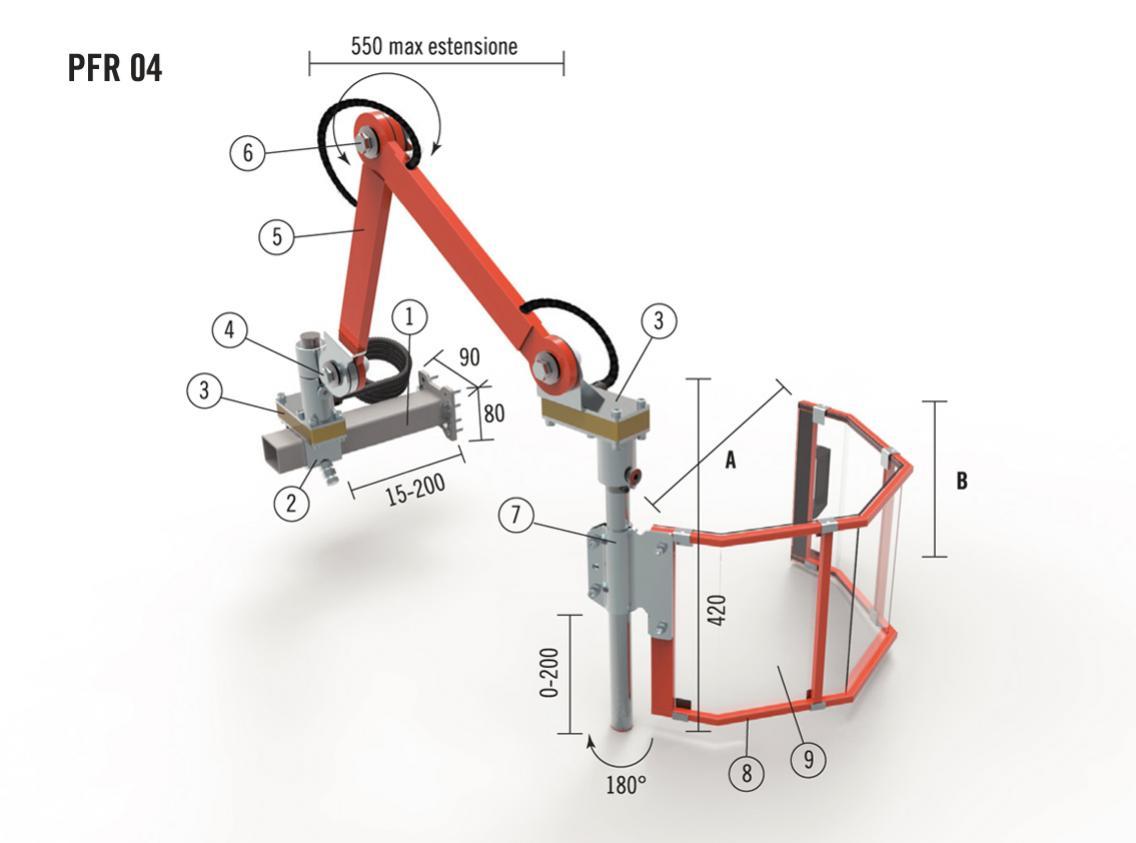

1. Levelling anchorage stirrup - in tubular steel

2. Depth-adjustable safety guard support

3. Safety microswitch main box - 180 rotation - n.2 NC contacts

4. Horizontal adjustment clamp

5. Articulated arms - in tubular steel

6. Rubbing articulation with friction disc

7. Shield-arm connection clamp in pressed steel

8. Shield structure - in tubular steel

9. Thermo-formed shield - in plastic shockproof and oil-resistant material

PFR 04/400 4002359,8
PFR 04/500 50023510,1
PFR 04/600 60023510,4
  • Estimated delivery on this item 1-2 weeks from order
  • Packing and delivery is £20.00 for this guard (UK mainland only)
