PRODUCT CODE : PFR 40
Sponmech Safety Systems manufacture and supply a large range of Milling Machine Guards to suit virtually all types and sizes of conventional and CNC milling machines both horizontal & vertical including Bridgeport, XYZ, Huron, Cincinnati, Adcock & Shipley, Parkson & BSA. They are fitted with electrical interlock systems.
• The PFR 40 protects operator from direct contact with rotating spindle components protruding debris and lubricant-coolant from machine.

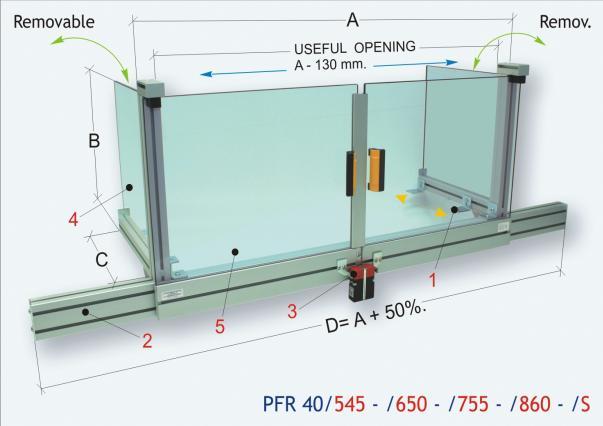

• Guard attaches to the perimeter of the machine table(see point 1 on Diagram).
• Guard comes with two sliding doors made using top quality polycarbonate, which are set on polythene "skates" enabling full opening.
• Cut outs can be easily made in polythene to allow room for a vice to be fitted.
•The Door screens are made using top quality polycarbonate ensuring "Shock proof" resistance and excellent visibility.
• Comes complete with double safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.
• We can guarantee our "Next generation" standard guards do not disrupt the operators workflow whilst maintaining maximum safety at all times.
• All "Next Generation" Machine guards are in conformance with P.U.W.E.R (1998) and come with a certificate of conformity.
**We also accept telephone orders - all major credit & debit cards accepted**
Sponmech Safety Systems manufacture and supply a large range of Milling Machine Guards to suit virtually all types and sizes of conventional and CNC milling machines both horizontal & vertical including Bridgeport, XYZ, Huron, Cincinnati, Adcock & Shipley, Parkson & BSA. They are fitted with electrical interlock systems.
• The PFR 40 protects operator from direct contact with rotating spindle components protruding debris and lubricant-coolant from machine.
• Guard attaches to the perimeter of the machine table(see point 1 on Diagram).
• Guard comes with two sliding doors made using top quality polycarbonate, which are set on polythene "skates" enabling full opening.
• Cut outs can be easily made in polythene to allow room for a vice to be fitted.
•The Door screens are made using top quality polycarbonate ensuring "Shock proof" resistance and excellent visibility.
• Comes complete with double safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.
• We can guarantee our "Next generation" standard guards do not disrupt the operators workflow whilst maintaining maximum safety at all times.
• All "Next Generation" Machine guards are in conformance with P.U.W.E.R (1998) and come with a certificate of conformity.
**We also accept telephone orders - all major credit & debit cards accepted**
| CODE | A | B | C | D | KG |
|---|---|---|---|---|---|
| PFR 40/545 | 1000 | 450 | 350 | 1500 | 20,0 |
| PFR 40/650 | 1200 | 500 | 400 | 1800 | 24,0 |
| PFR 40/755 | 1400 | 550 | 450 | 2100 | 28,0 |
| PFR 40/860 | 1600 | 600 | 500 | 2400 | 32,0 |
