Electrical Installation & Integration of Machinery Guarding

A lot of machinery guarding is fitted to older or secondhand machinery in need of an upgrade to meet current safety requirements and legislation.

With this, there comes the challenge of wiring new machine guarding interlocks into the existing and often complex wiring of the machine.

Sponmech can provide a fully PUWER 98 compliant approach to your wiring with our machine safety control boxes.

Create a safer, more productive workplace with Sponmech’s electrical wiring integration

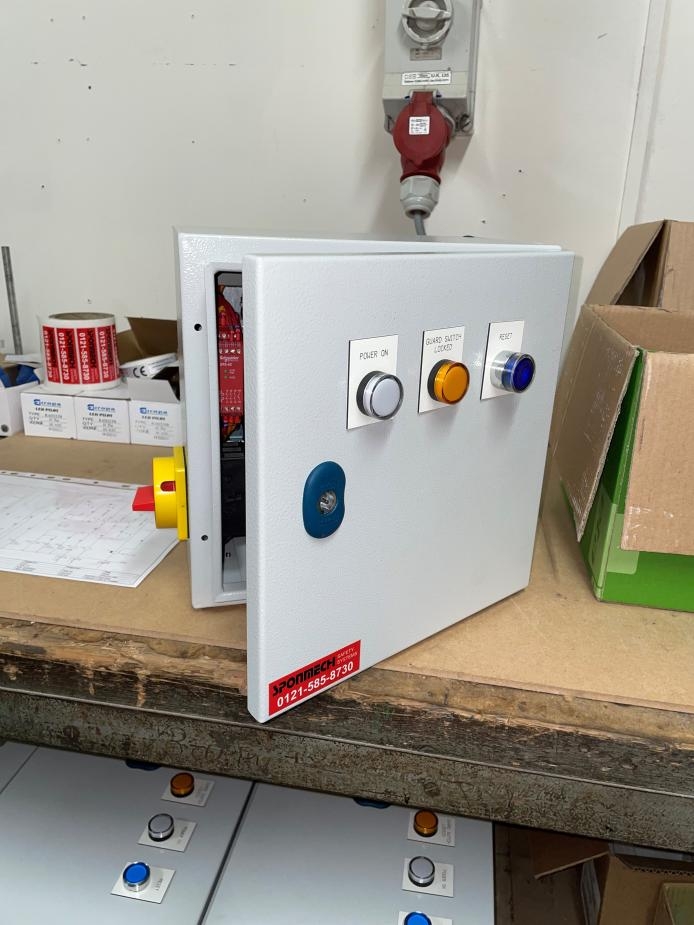

Our electrical control boxes are custom made and are built to integrate your new machinery guarding system onto your older machine in the most safe and compliant way possible.

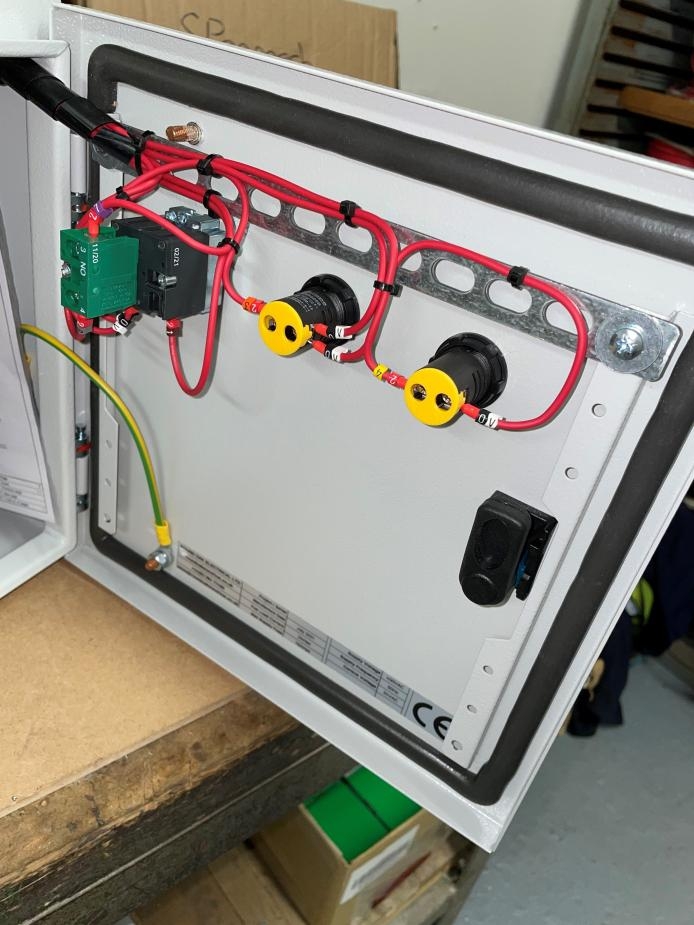

Our electrical control boxes have a locking Isolator, 24v low power transformer, safety checking relay and a timer all built in so we can control solenoid locking switches on some of our projects. They also have indicator lights and an estop.

Which electrical control box will I need for my machine guarding integration?

Sponmech will invite you to fill in our Machine Guard Safety Level Performance Questionnaire which will enable us to quote for the safety panel needed

Robot system suppliers and integrators and automation specialists will often specify the electrical control systems and the interlock type. Sponmech work with machine and robot integrators to help select the best interlock for their particular process.

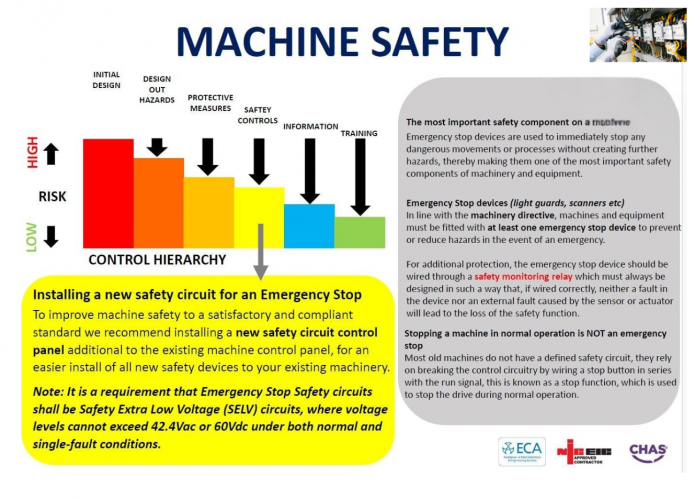

Implementing Emergency Stop Systems - Safety Considerations & Regulations – please download our practical guide.

Standards & Compliance

Sponmech’s guarding is PUWER compliant. All machinery guarding designed and manufactured by Sponmech come with certificates of conformity, are fully HSE compliant and where the application requires it, will also be CE marked.
Our machine guarding systems comply with the following standards:

2006/42/EC
BS EN ISO 14120:2015
BS EN ISO 12100:2003+A1:2009
The Provision and use of Work Equipment Regulations 1998 (P.U.W.E.R 98)

We are a quality registered company with a quality management system for "the design, manufacture and installation of acoustic and non acoustic machinery safety guards (including aluminium guards) to BS EN ISO 9001:2015." UKAS NQA certificate No 9968.

All of our engineers are accredited, safety trained and all carry national safety passports.
