Sponmech Safety Systems manufacture and supply a large range of Milling Machine Guards to suit virtually all types and sizes of conventional and CNC milling machines both horizontal & vertical including Bridgeport, XYZ, Huron, Cincinnati, Adcock & Shipley, Parkson & BSA. They are fitted with electrical interlock systems.

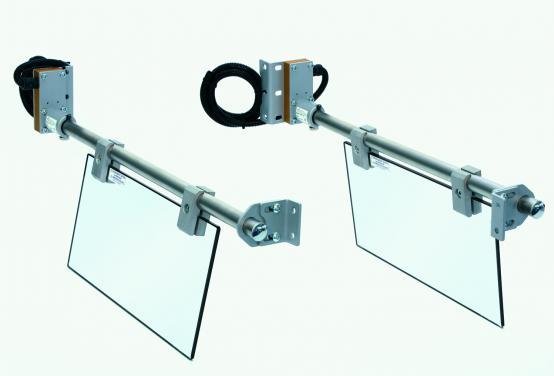

• The PFR 10 protects operator from direct contact with the horizontal shaft and airborne debris and coolant from machine.

• Comes with two screens, made using top quality polycarbonate ensuring "Shock proof" resistance and excellent visibility.

• The screens can be profiled to suit the equipment in use if needed.

• Guard is attached to two sides of the machine.

• The guard is adjustable in a circular and linear manner.

• Comes complete with double safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.

• We can guarantee our "Next generation" standard guards do not disrupt the operators workflow whilst maintaining maximum safety at all times.

• All "Next Generation" Machine guards are in conformance with P.U.W.E.R (1998) and come with a certificate of conformity.

**We also accept telephone orders - all major credit & debit cards accepted**

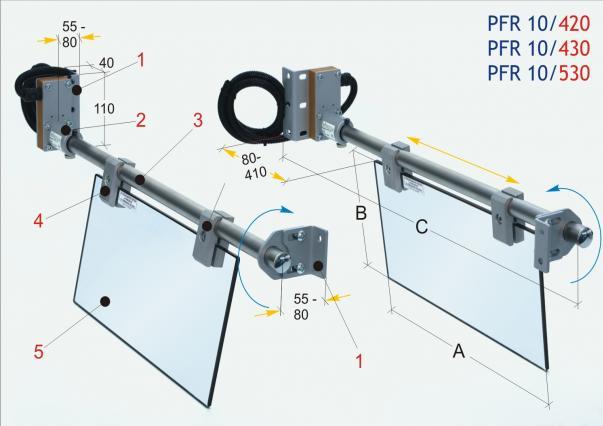

  1. Adjustable angular stirrups, for microswitch box anchorage and support of the horizontal arm in pressed steel
  2. Safety microswitch main box 180 degree rotation n. 2 NC contacts
  3. Horizontal shield support arm in tubular stainless steel
  4. Fixing clamps for the axial and radial adjustment of the shield in aliminium
  5. Shield in plastic shockproof and oil-resistant material

PFR 10/420 4002008308,5
PFR 10/430 4003008308,8
PFR 10/530 5003009309,1
  • Estimated delivery on this item 1-2 weeks
  • Postage and packing £20.00 (UK mainland only)
  • Please contact us for a quote for all deliveries outside of mainland UK
