PTO 02/300
Lathe Machine Guard
tpsafe safety guards by technopiu
From £280.00
   Can be attached to the base from the front or the side The PTO 02 protects the operator from contact with the upper part of the chuck and from coolant...
More information
Total
£280.00 Excl. VAT
Payment Options
We also accept telephone orders. Give Sponmech a call on 0121 585 8730

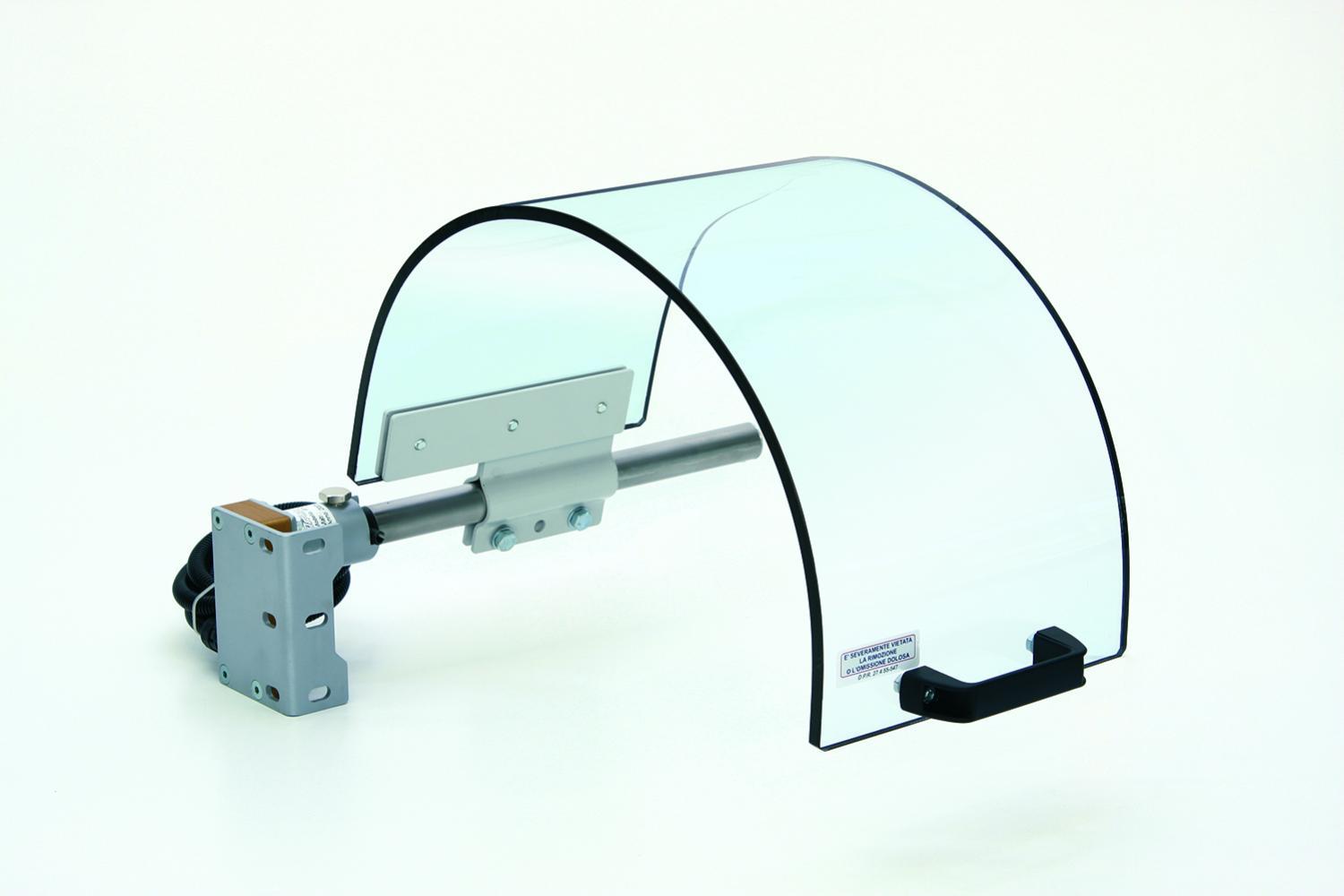

Lathe Machine Guard Product Information



  •  Can be attached to the base from the front or the side
  • The PTO 02 protects the operator from contact with the upper part of the chuck and from coolant spray.
  •  We can tailor make brackets, mounts and modify standard guards as required.
  •  Equipped with a steel and polycarbonate semicircular shield.
  •  Top quality polycarbonate build ensuring resistance to high impact and excellent visibility.
  • Adjustable for a close fit to the head stock.
  •  Complete with safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.
  • We can guarantee our "Next generation" standard guards do not disrupt the operators workflow whilst maintaining maximum safety at all times.

**We also accept telephone orders - all major credit & debit cards accepted**

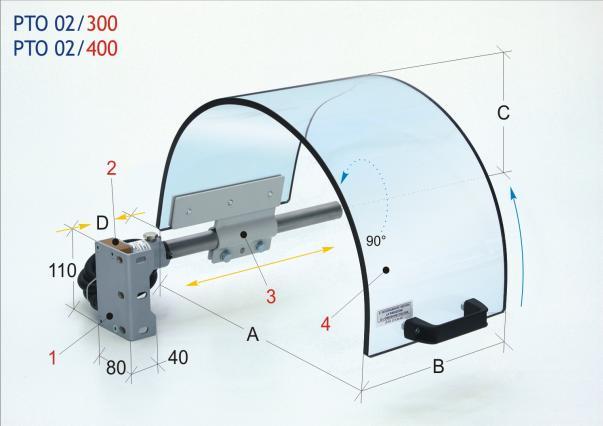

Lathe Machine Guard Size Guide
  1. Frontal and lateral anchorage stirrup
  2. Safety microswitch main box - 90 degree rotation - n.2 NC Contacts
  3. Adjustable shield connection clamp with support arm in pressed steel
  4. Monolithic shield - in thick plasic shockproof and oil resistant material
Product Code
A
B
C
D
KG
PTO 02/300
300
200
200
0-200
3,0
PTO 02/400
400
220
250
0-190
Lathe Machine Guard Delivery Information
  • Estimated delivery on this item 1-3 working days
  • Postage and packaging £20.00 (UK mainland only)
  • Please contact us for a quote for all deliveries outside of mainland UK
  • **We also accept telephone orders - all major credit & debit cards accepted**
Enquire About Lathe Machine Guard
Please complete the enquiry details below so we can discuss your requirements.
If you’d prefer to speak to on our experienced team, you can give us a call on 0121 585 8730
Upload a file or drag and drop
PNG, JPG, PDF, .doc, dwg or dxf - up to 10MB
