PRODUCT CODE : PTO 11/435

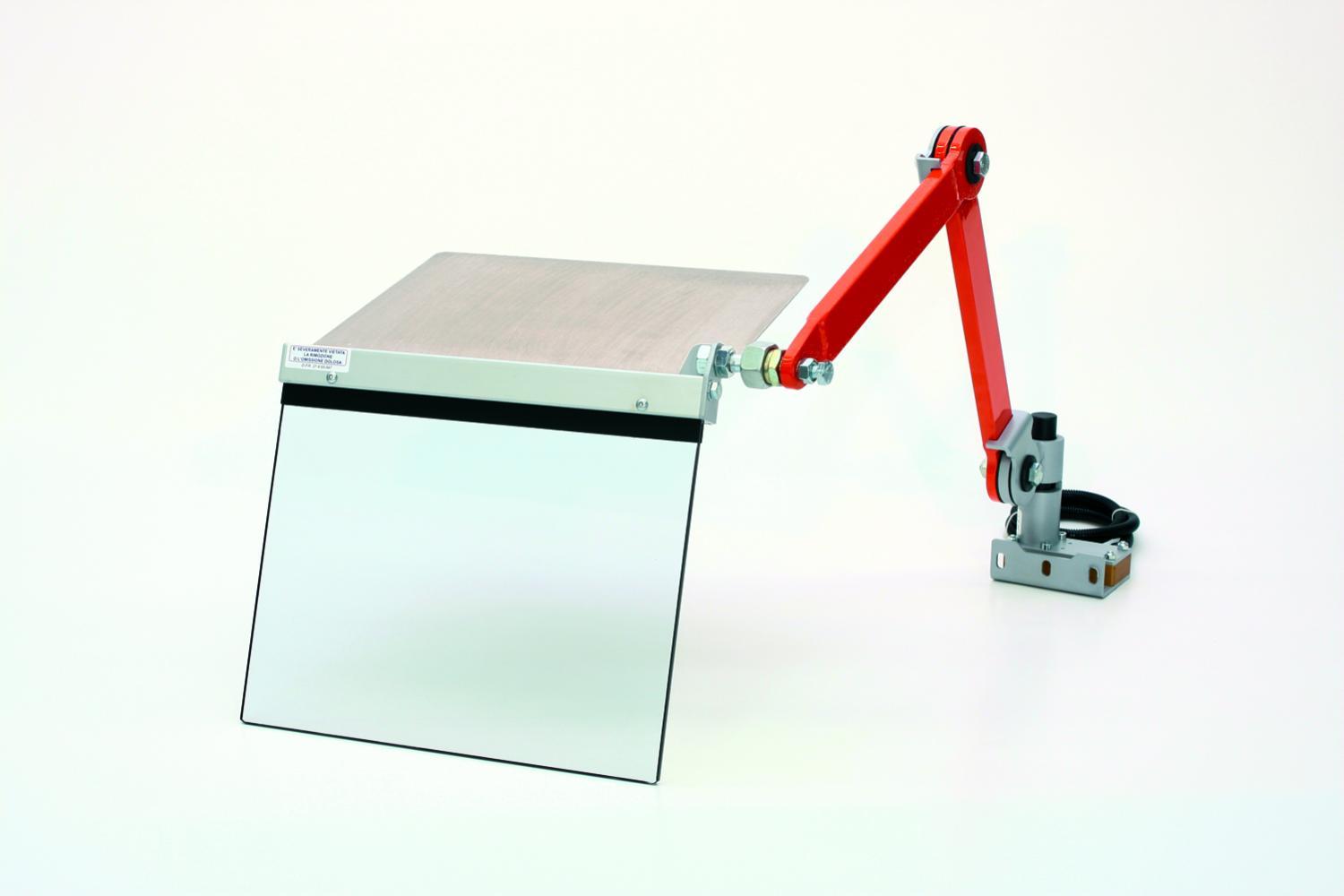

Guard with triple arm.
• This is a high quality guard, made using quality materials ensuring strength and durability.
• The PTO 11 protects the operator from the rotating chuck components and protruding shavings and lubricant-coolant.
• The guard is attached behind the saddle.
• The shield is made from top quality polycarbonate ensuring resistance to high impact and excellent visibility.
• The shield is held up by an articulated arm and is highly adjustable because it rotates on a ball socket.
• The shield also has a panel that protects the operator from swarf.
• We can guarantee that it will not disrupt the operators workflow and that maximum safety is maintained at all times.
• We can tailor make brackets, mounts and modify guard if required.
• It comes complete with a safety micro switch conforming to EN 1088.
• This guard is CE marked, conforms to P.U.W.E.R (1998) and comes with a certificate of conformity.
**We also accept telephone orders - all major credit & debit cards accepted**
Guard with triple arm.
• This is a high quality guard, made using quality materials ensuring strength and durability.
• The PTO 11 protects the operator from the rotating chuck components and protruding shavings and lubricant-coolant.
• The guard is attached behind the saddle.
• The shield is made from top quality polycarbonate ensuring resistance to high impact and excellent visibility.
• The shield is held up by an articulated arm and is highly adjustable because it rotates on a ball socket.
• The shield also has a panel that protects the operator from swarf.
• We can guarantee that it will not disrupt the operators workflow and that maximum safety is maintained at all times.
• We can tailor make brackets, mounts and modify guard if required.
• It comes complete with a safety micro switch conforming to EN 1088.
• This guard is CE marked, conforms to P.U.W.E.R (1998) and comes with a certificate of conformity.
**We also accept telephone orders - all major credit & debit cards accepted**

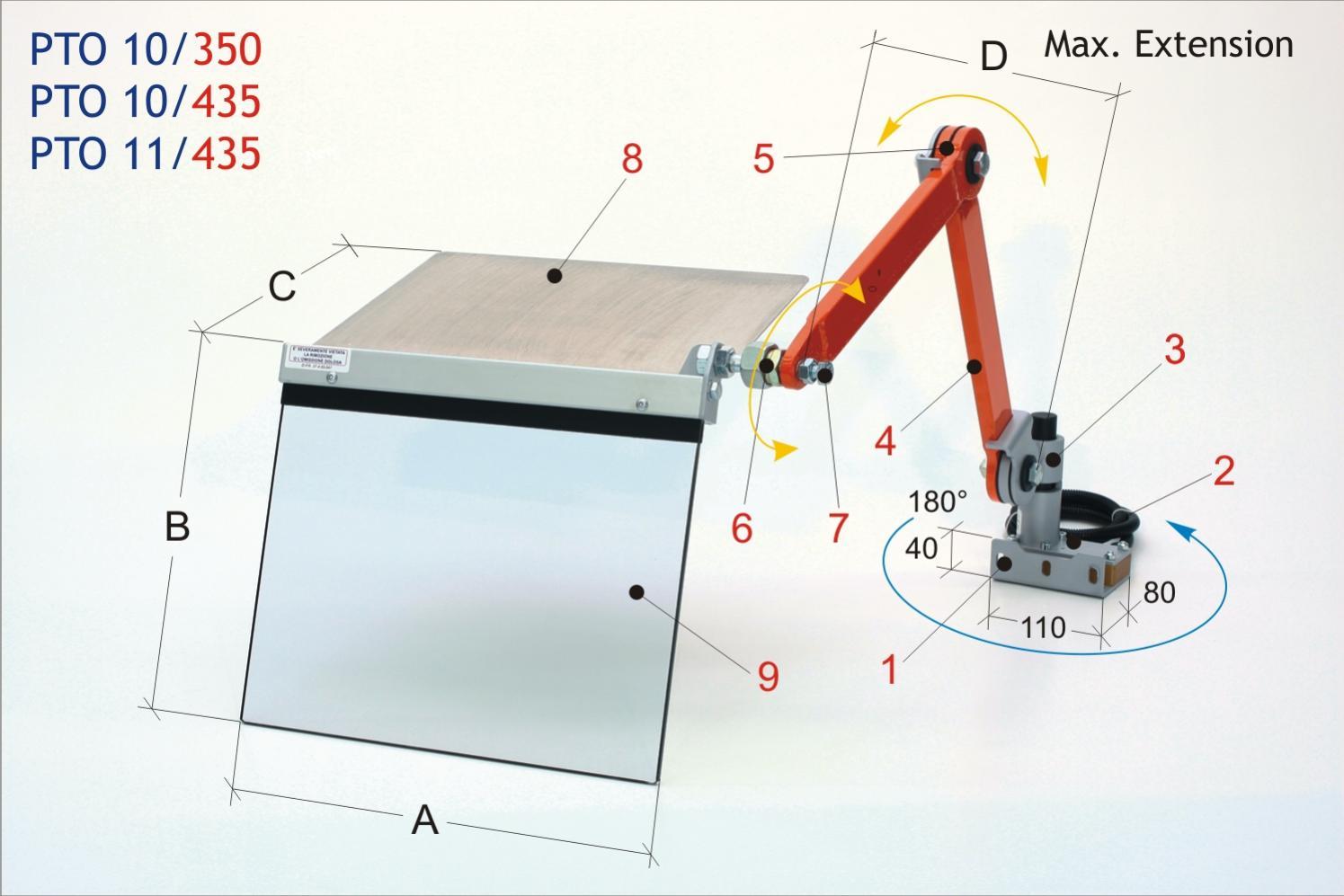

1. Frontal and lateral anchorage stirrup
2. Safety microswitch main box 180 degree rotation - n.2 NC Contacts
3. Horizontal adjustment clamp
4. Articulated arms in tubular steel
5. Rubbing articulation with friction disc
6. Ball and socket joint for shield orientation
7. Ball and socket joint release screws
8. Upper anti shavings partition in aluminium
9. Shield in shockproof and oil resistant plastic material
| CODE | A | B | C | D | KG |
|---|---|---|---|---|---|
| PTO 11/435 | 400 | 350 | 310 | 800 | 8,6 |
Estimated delivery on this item 1-3 working days
Postage and packaging £20.00 (UK mainland only)
