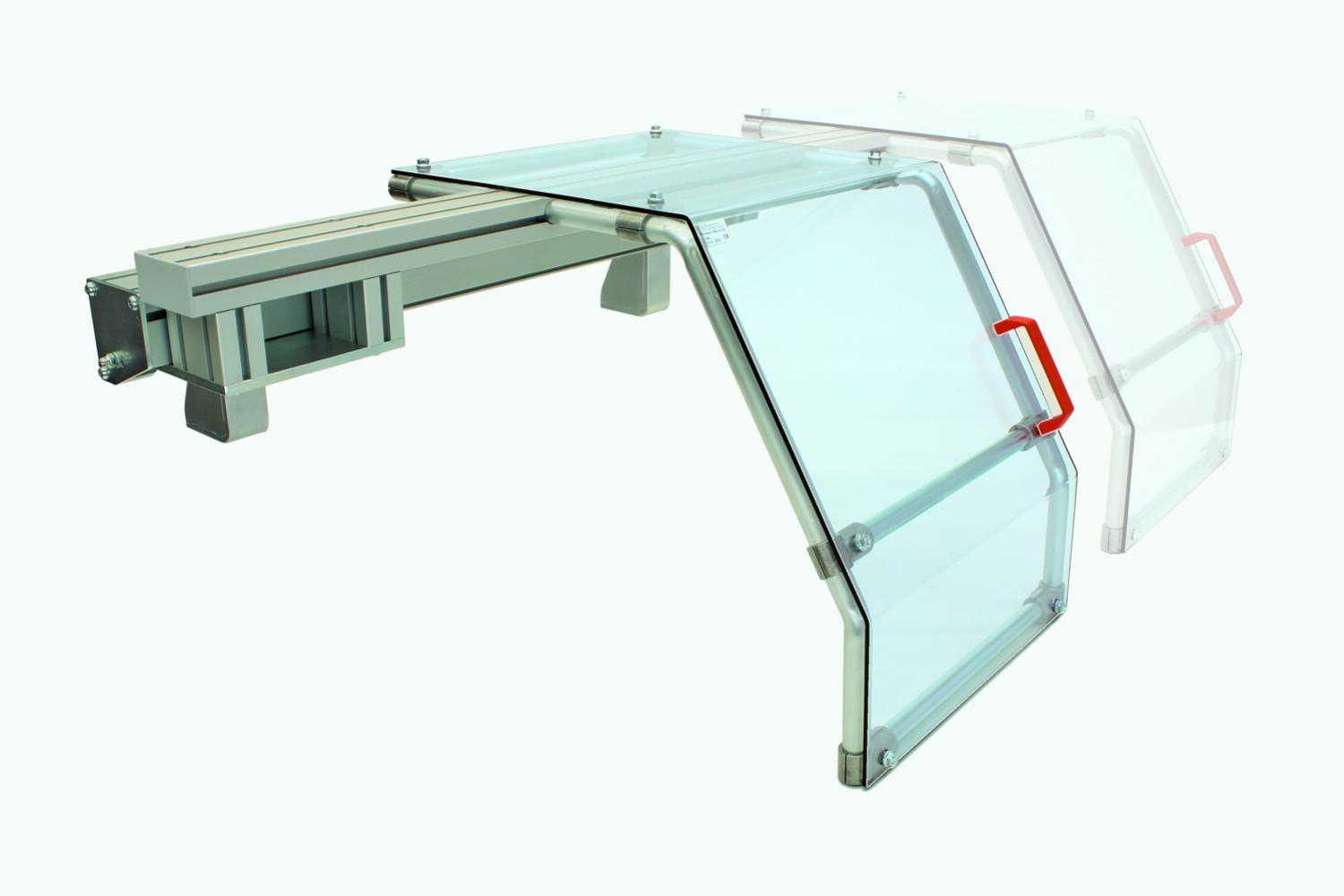

Sliding Lathe Guard
tpsafe safety guards by technopiu
From £959.00
• This is a high quality guard, made using quality materials ensuring strength and durability. • It comes equipped with a wide visibility sliding shield, made from top quality polycarbonate...
More information
Total
£959.00 Excl. VAT
Payment Options
We also accept telephone orders. Give Sponmech a call on 0121 585 8730
Sliding Lathe Guard Product Information

• This is a high quality guard, made using quality materials ensuring strength and durability.

• It comes equipped with a wide visibility sliding shield, made from top quality polycarbonate ensuring resistance to high impact and excellent visibility

• The PTO 20 protects the operator from the rotating chuck components and protruding shavings and lubricant-coolant.

• The guard is attached to the head of machine

• It is highly adjustable and adaptable to suite your lathe and comes in three different sizes

• We can guarantee that it will not disrupt the operators workflow and that maximum safety is maintained at all times.

• We can tailor make brackets, mounts and modify guard if required.

• It comes complete with safety micro switch conforming to EN 1088.

• This guard is CE marked, conforms to P.U.W.E.R (1998) and comes with a certificate of conformity.

• If is this model does not suite your machine we can also modify the guard to your requirements or manufacture a bespoke large lathe guard as needed.

**We also accept telephone orders - all major credit & debit cards accepted**

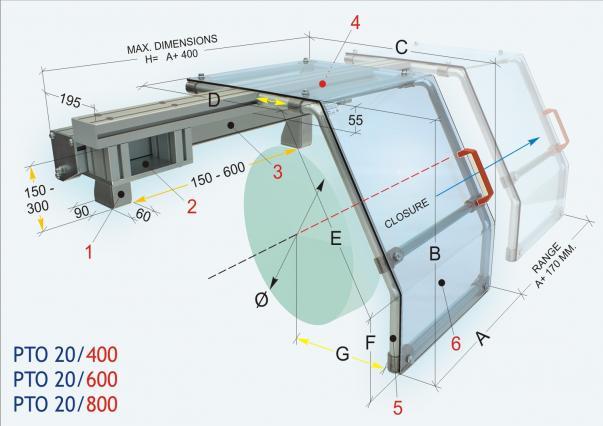

Sliding Lathe Guard Size Guide
  1. Anchorage stirrup with wide vertical adjustment
  2. Sliding mobile protection support carriage
  3. Auto-carrying guide in extruded aliminium, with sliding system composed from tempered and rectified steel guides-bearings, placed in protected internal position
  4. Safety microswitch with separated actuator - n.2 NC contacts
  5. Shield structure in tubular steel and aliminium
  6. Shield in shockproof and oil-resistant plastic material, of great thickness
Product Code
A
Ø
B
C
D
E
F
G
KG
PTO 20/400
450
400-500
430
655
480
350
125
280-540
26,6
PTO 20/600
450
600-700
520
855
640
430
150
320-740
27,7
PTO 20/800
450
800-900
640
1065
800
530
180
370-950
28,8
Sliding Lathe Guard Delivery Information
  • Estimated delivery on this item 1-2 weeks

  • Packaging and pallet delivery £80.00 (UK mainland only)

  • Please contact us for a quote for all deliveries outside of mainland UK

  • **We also accept telephone orders - all major credit & debit cards accepted**
