PTO 07

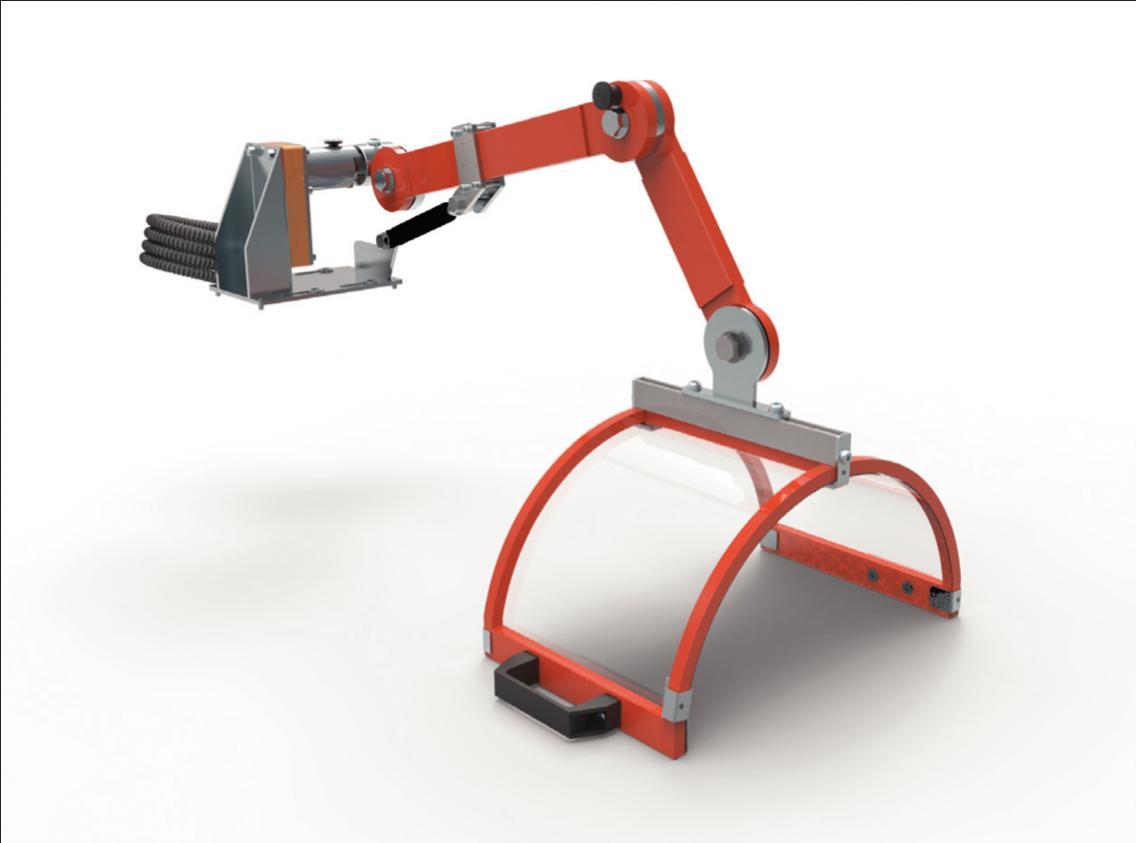

Chuck Guard with Extendable Arm
tpsafe safety guards by technopiu
From £459.00
The PTO 07 lathe chuck guard protects the operator from contact with the upper part of the chuck and from coolant spray. Equipped with two articulated and adjustable arms, safety lock and...
More information
Total
£459.00 Excl. VAT
Payment Options
We also accept telephone orders. Give Sponmech a call on 0121 585 8730
Chuck Guard with Extendable Arm Product Information

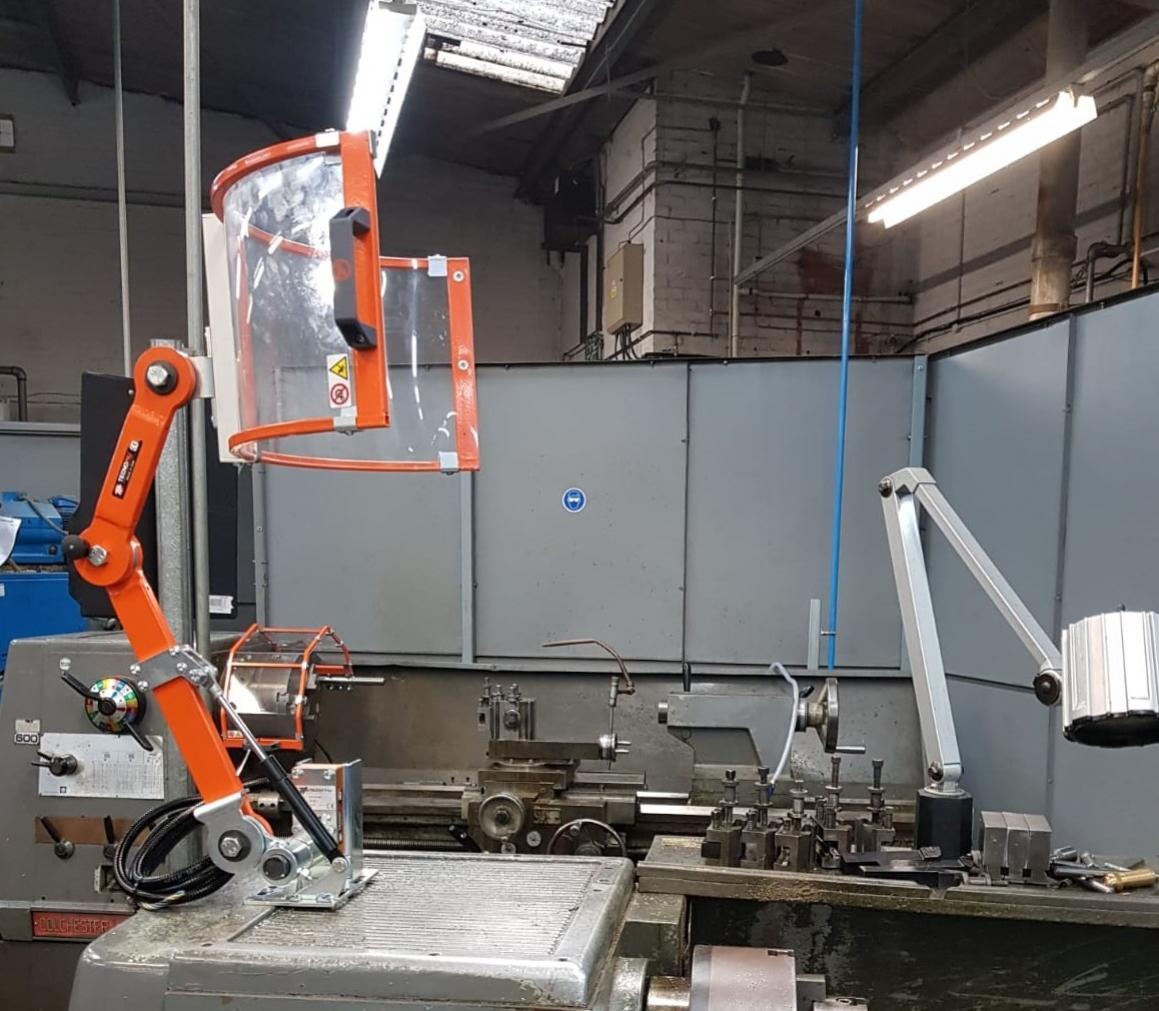

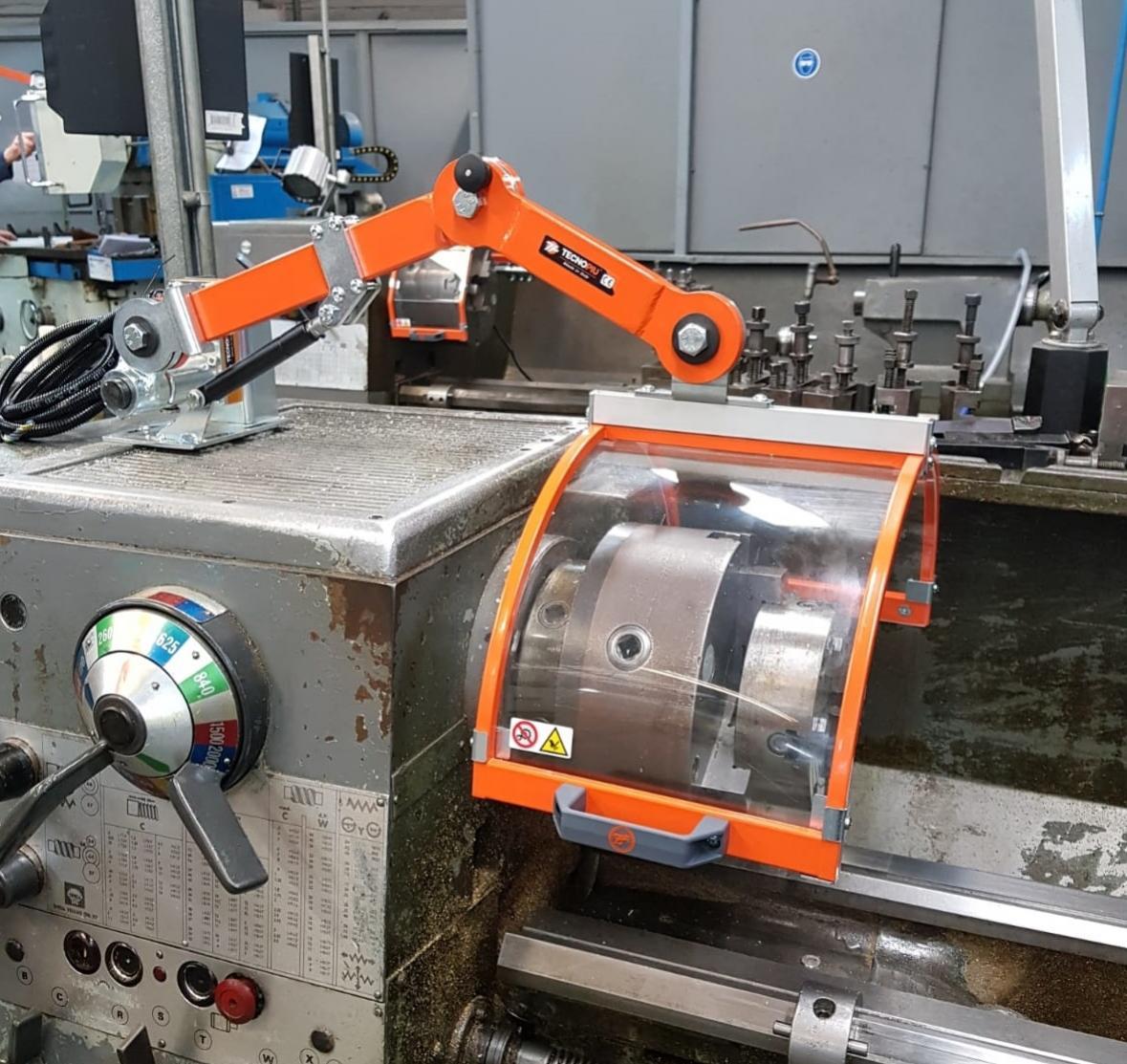

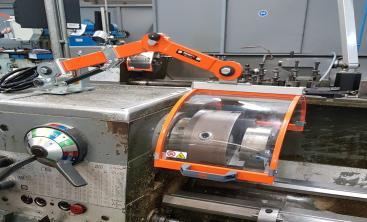

  • The PTO 07 lathe chuck guard protects the operator from contact with the upper part of the chuck and from coolant spray.
  • Equipped with two articulated and adjustable arms, safety lock and a gas spring against the accidental fall of the structure on the lathe chuck and to improve the manoeuvrability of the system.
  • Equipped with semicircular shield, adjustable until the machine head.
  • Complete with safety microswitch.
  • We can guarantee our "Next generation" standard machine guards do not disrupt the operators workflow whilst maintaining maximum safety at all times.
  • All our Machine guards are in conformance with P.U.W.E.R (1998) and come with a certificate of conformity.

 **We also accept telephone orders - all major credit & debit cards accepted**

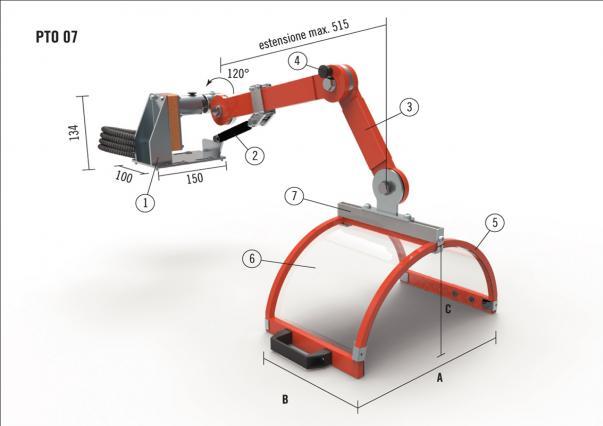

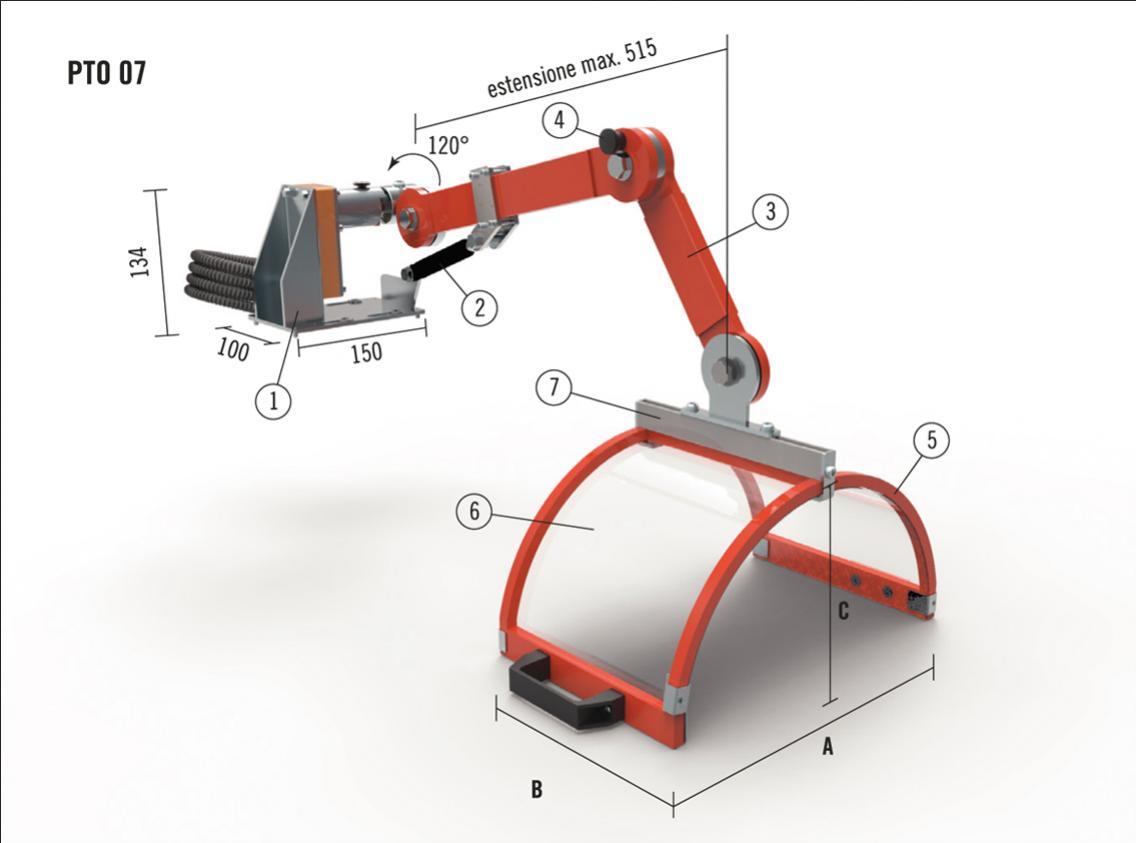

Chuck Guard with Extendable Arm Size Guide

1. Anchorage and support structure of the shield with safety microswitch main box - 120° rotation - n.2 NC contacts

2. Gas spring

3. Articulated arms - in tubular steel

4. Adjustment shield knob for the arms

5. Shield structure - in tubular steel

6. Thermo-shaped shield - in shockproof and oil-resistant material

7. Anchorage stirrup - in aluminium and steel - adjustable horizontally

Product Code
A
B
C
KG
PTO 07/300
300
200
180
9,5
PTO 07/400
400
235
230
9,8
PTO 07/500
500
235
230
10,1
Chuck Guard with Extendable Arm Delivery Information
  • This item is available approx 2 weeks from order
  • Delivery on this item is £20.00 (UK mainland only)
  • Please contact us for a quote for all deliveries outside of mainland UK
  •  **We also accept telephone orders - all major credit & debit cards accepted**
