PTO 05

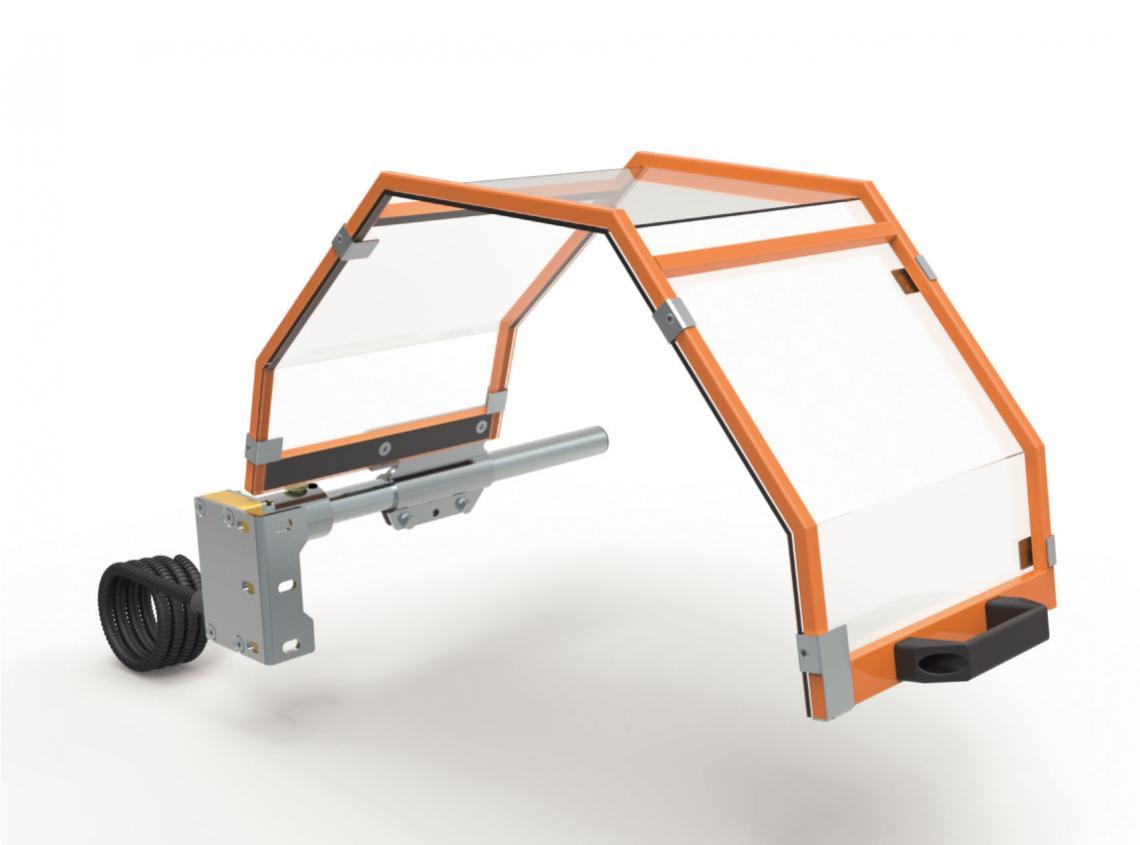

Lathe Chuck Safety Guard
tpsafe safety guards by technopiu
From £310.00
The PTO 05 lathe chuck safety guard protects the operator from direct contact with the upper part of the lathe chuck and coolant spray. Can be attached to the base...
More information
Total
£310.00 Excl. VAT
Enquire About This Product
Payment Options
We also accept telephone orders. Give Sponmech a call on 0121 585 8730
Lathe Chuck Safety Guard Product Information
  • The PTO 05 lathe chuck safety guard protects the operator from direct contact with the upper part of the lathe chuck and coolant spray.
  • Can be attached to the base from the front or the side.
  • Equipped with a steel and polycarbonate semicircular shield.
  • Adjustable for a close fit to the head stock.
  • Complete with safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.
  • We can guarantee our "Next generation" standard machine guards do not disrupt the operators workflow whilst maintaining maximum safety at all times.
  • All our Machine guards are in conformance with P.U.W.E.R (1998) and come with a certificate of conformity.
Lathe Chuck Safety Guard Size Guide

1. Frontal and lateral anchorage stirrup

2. Safety microswitch main box - 90° rotation - n.2 NC contacts

3. Sheild connection clamp with support arm - in pressed steel

4. Shield structure - in tubular steel

5. Shield in shockproof and oil-resistant plastic material

Product Code
A
B
C
D
KG
PTO 05/400
400
235
230
0-150
4.1
PTO 05/500
500
235
280
0-150
4.4
PTO 05/600
600
235
330
0-150
4.7
Lathe Chuck Safety Guard Delivery Information
  • Delivery 1-2 weeks from order

  • Please contact us for a quote for all deliveries outside of mainland UK

  • Postage & Packaging £20.00 (UK mainland only)
