Enclosure Millguard Model EM3/T

• Heavy Duty Application
• Steel tubular frame
• Polycarbonate windows
• Instant access

Complies with BS EN 292 Pt. 1-2 pr EN 293.

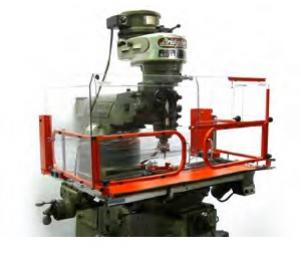

The Enclosure Millguard Model  EM3/T has been specifically designed to promote efficient and confident machine operation; to enclose dangerous milling cutters and restrict flying swarf and coolant.

Two independent framed assemblies fitted with tough 5mm Polycarbonate vizor are mounted on adjustable table rails on either side of the machine table by high tensile 'T' bolts which are supplied. Each guard hinges on a pivot bracket and features the same unique cantilever system employed on the cantilever millguard. An integral locking mechanism holds the guard in the closed operational mode, a quick release plunger pin allows each section to swing and hinge aside to give immediate and open access to the entire work area. All vision panels incorporate angled return leading edges that restrict flying swarf and coolant to the bed area of the machine.

Model EM3/T is designed for Turret Milling Machines and has the additional feature of a rise and fall right hand side window to give clearance on pendant type control panel, the front panel also has a sliding window to enable manual operation of the turret-head-lever.

Rear Guards suitable for Model EMG provide total protection are available.

Special length guards can be manufactured, price on application.

Electrical Interlocks are fitted as standard.
