The Enclosure Millguard Model EM/3 has been specifically designed to promote efficient and confident machine operation; to enclose dangerous milling cutters and restrict flying swarf and coolant.
Complies with BS EN 292 Pt. 1-2 pr EN 293.
The Enclosure Millguard Model EM/3 has been specifically designed to promote efficient and confident machine operation; to enclose dangerous milling cutters and restrict flying swarf and coolant.

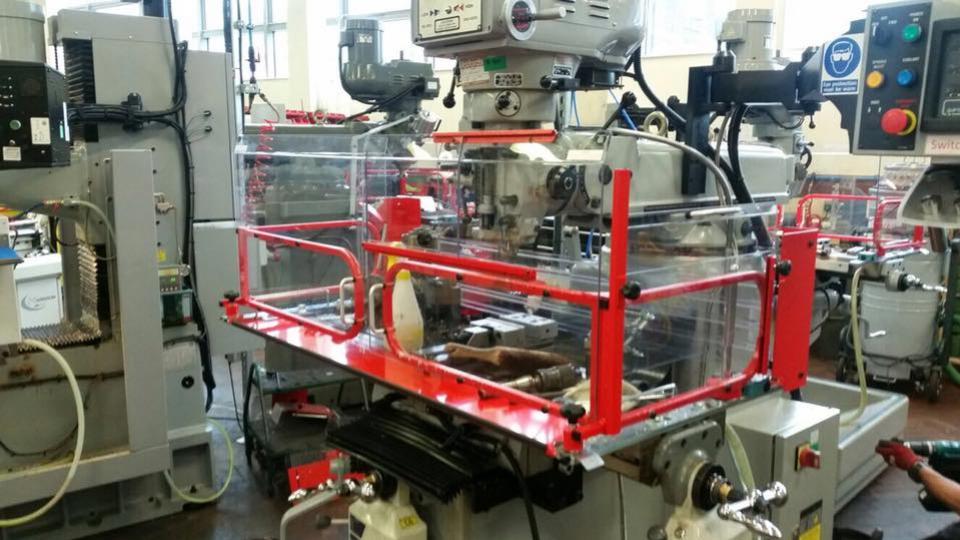

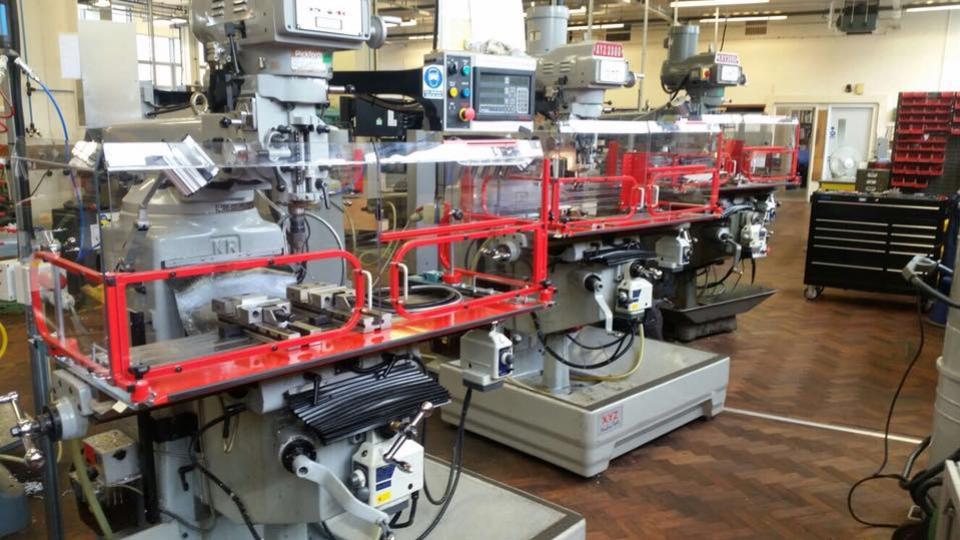

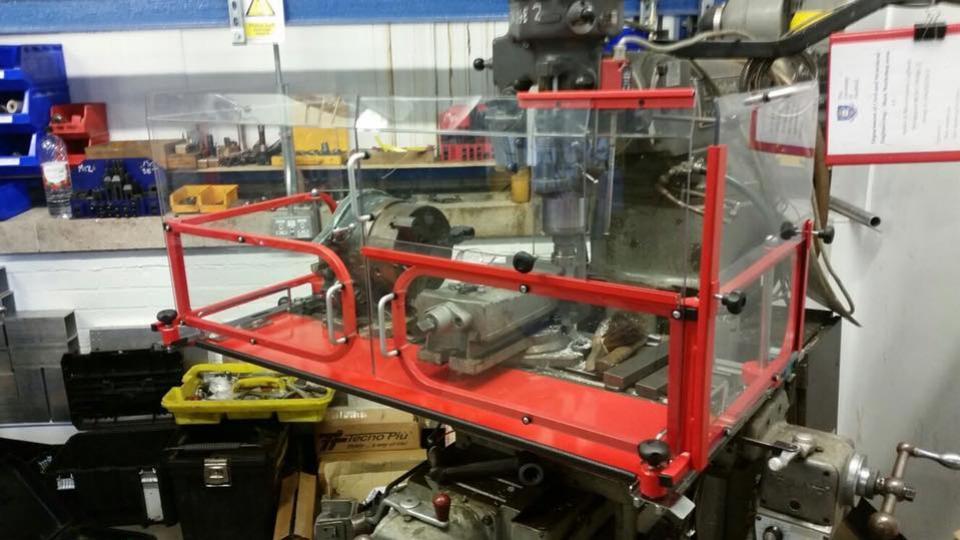

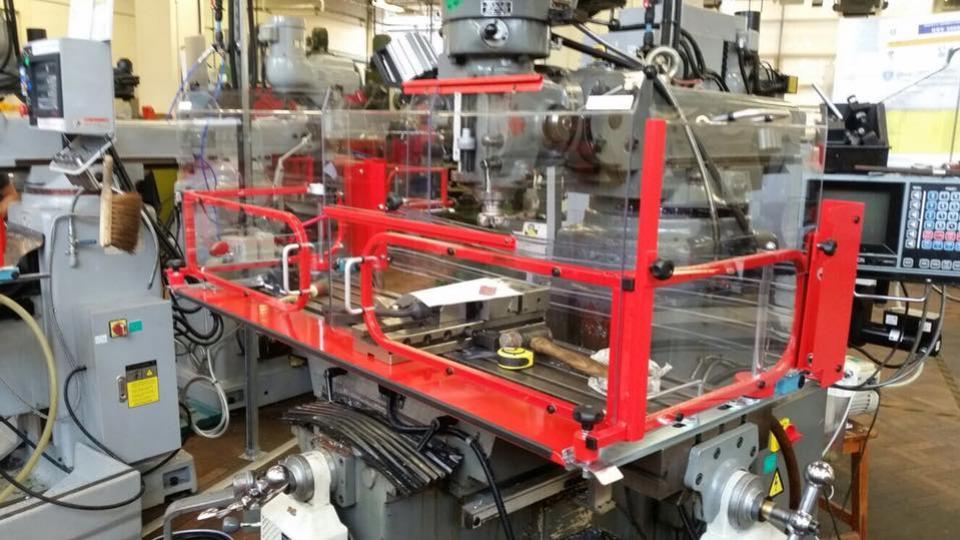

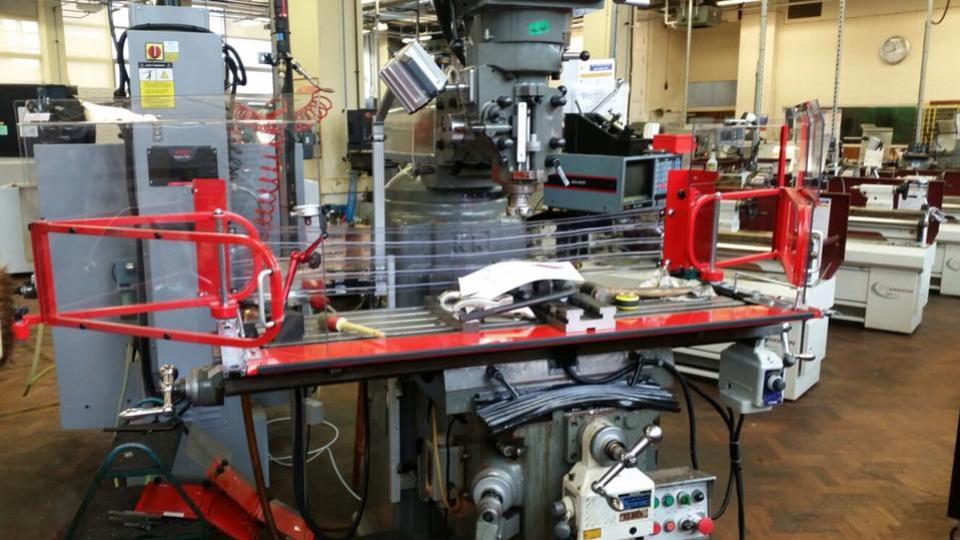

Two independent framed assemblies fitted with tough 5mm Polycarbonate vizor are mounted on adjustable table rails on either side of the machine table by high tensile 'T' bolts which are supplied. Each guard hinges on a pivot bracket and features the same unique cantilever system employed on the cantilever millguard. An integral locking mechanism holds the guard in the closed operational mode, a quick release plunger pin allows each section to swing and hinge aside to give immediate and open access to the entire work area. All vision panels incorporate angled return leading edges that restrict flying swarf and coolant to the bed area of the machine.
Rear Guards suitable for Model EMG provide total protection are available.
Special length guards can be manufactured, price on application.
Electrical Interlocks are fitted as standard.
| Part No. | Description | Table Size Min | Table Size Max | Window Panel Side (Front) | Window Panel Size (Side) |
| +EM/3 | 1000mm | 1500mm | 1 - Dedicated to table length x 460mm height |
500x 460mm |
|
