Sponmech Safety Systems Ltd manufacture, supply and install a comprehensive range of grinding machine guards to suit virtually all types and sizes of cylindrical, tool & surface grinding machines including Jones & Shipman, Elliot & Churchill. These are available with or without electrical interlock systems. Specially designed/bespoke grinding machine guards are also available.



• The PRE 01 protects the operator from direct contact with the rotating grindstone, components and protruding lubricant-coolant.

• Attached to the machine by point 1 (See Diagram below)

• Guard comes equipped with a sliding door, moving smoothly on steel guides positioned on the outer of the guard.

• Door with "Shockproof" transparent screen, made using top quality polycarbonate ensuring excellent visibility and resistance.

• Guard frame is steel, with an inbuilt driptray which collects coolant.

• We can tailor make brackets, mounts and modify standard guards as required.

• Operator friendly, does not restrict flow of production and ensures maximum safety is achieved.

• Complete with safety micro-switch conforming to EN 1088.

• All "Next Generation" Machine guards are in conformance with P.U.W.E.R (1998) and come with a certificate of conformity.

**We also accept telephone orders - all major credit & debit cards accepted**

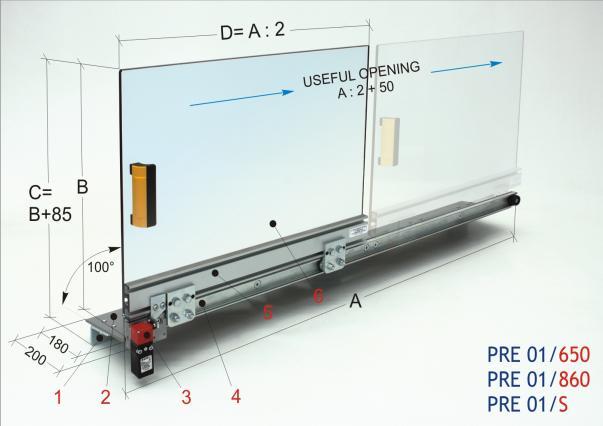

  1. Anchorage stirrups in pressed steel
  2. Inclined support sheet metal in sheet steel
  3. Safety microswitch with separated actuator with n.2 NC contacts
  4. Steel sliding guide with tempered bearings
  5. Shield support structure in aluminium profile
  6. Shield in shockproof and oil-resistant, thick, plastic material

CODE ABKG
PRE 01/650 120050016,5
PRE 01/860 160060020,5
  • Estimated delivery on this item 1-2 weeks from order.
  • Packing & pallet delivery £50.00 (UK mainland only)
  • Please contact us for a quote for all deliveries outside of mainland UK
  • **We also accept telephone orders - all major credit & debit cards accepted**
