PBF 10/435
Hydraulic Press Safety Guard
tpsafe safety guards by technopiu
From £450.00
• Universal rubbing articulated arms guard highly suitable for guarding hydraulic presses • The PBF 10 protects operator from direct contact with dangerous or moving parts. • It attaches to...
More information
Total
£450.00 Excl. VAT
Payment Options
We also accept telephone orders. Give Sponmech a call on 0121 585 8730
Hydraulic Press Safety Guard Product Information

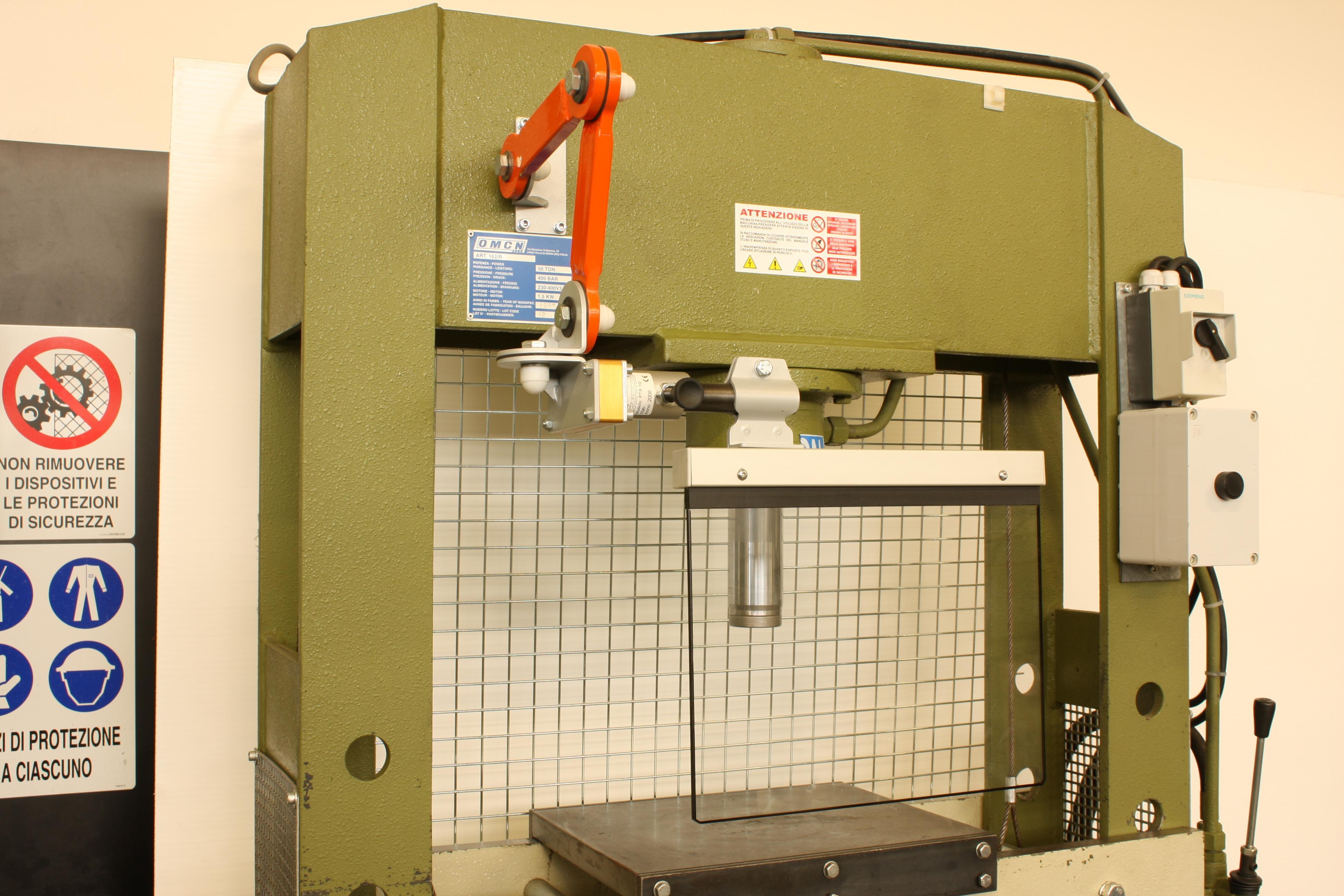

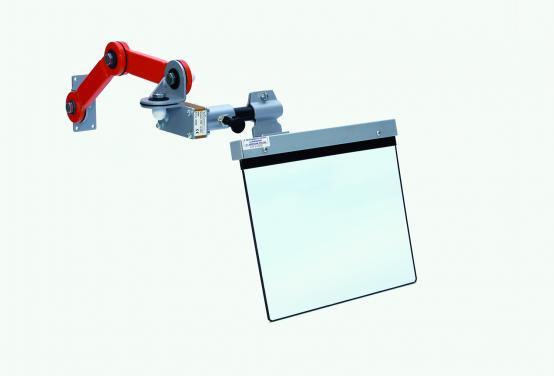

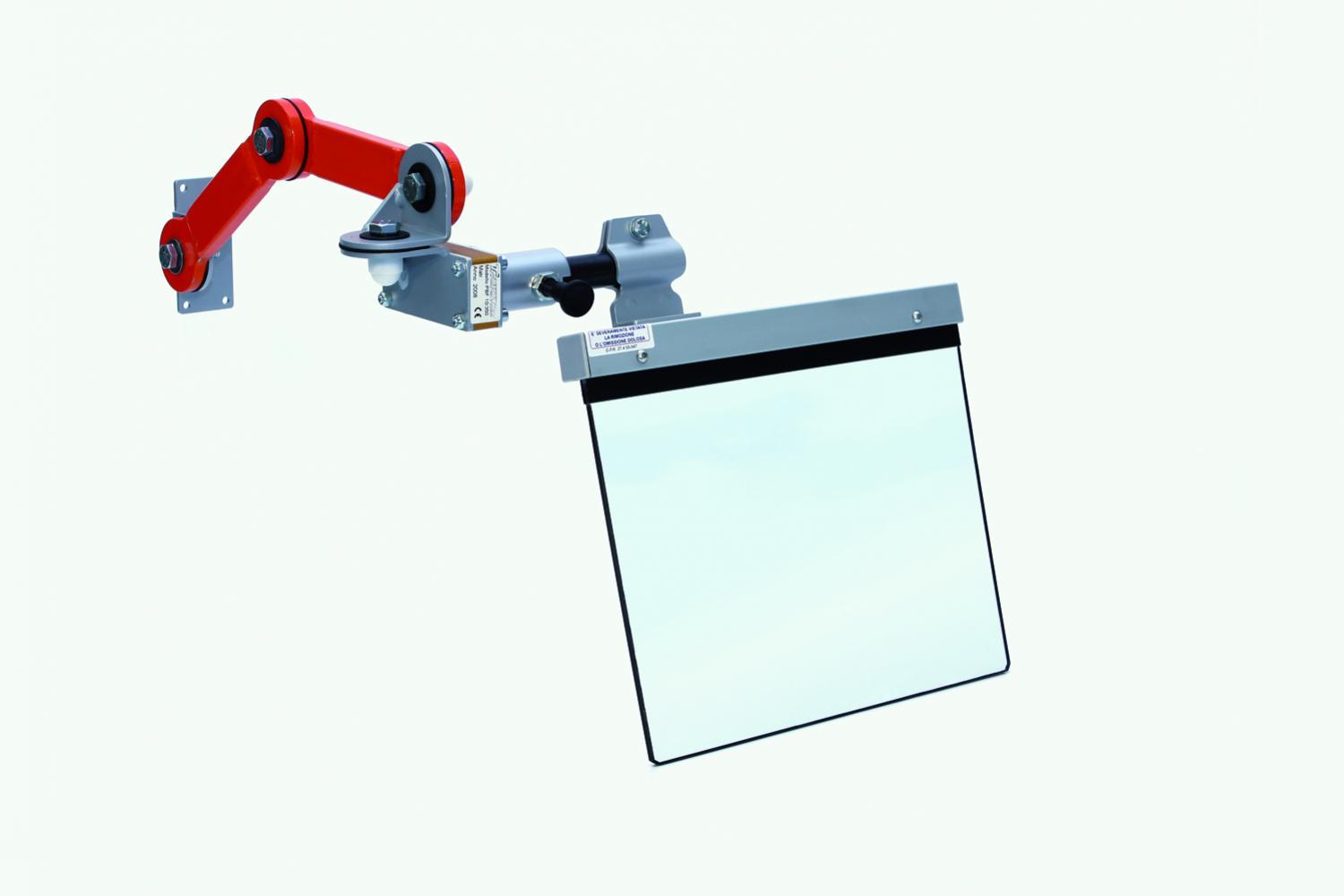

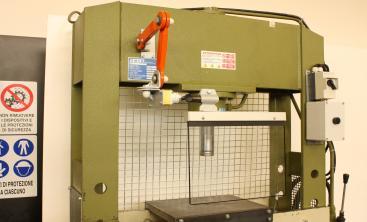

• Universal rubbing articulated arms guard highly suitable for guarding hydraulic presses

• The PBF 10 protects operator from direct contact with dangerous or moving parts.

• It attaches to the front of the machine and can moved in any direction.

• The guard is practical and immediately adjustable, designed specifically for frequent changes of operation.

• Guard is easy to install and operator friendly.

• Comes equipped with a wide visibility reversible shield, made out of top quality polycarbonate ensuring maximum resistance.

**We also accept telephone orders - all major credit & debit cards accepted**

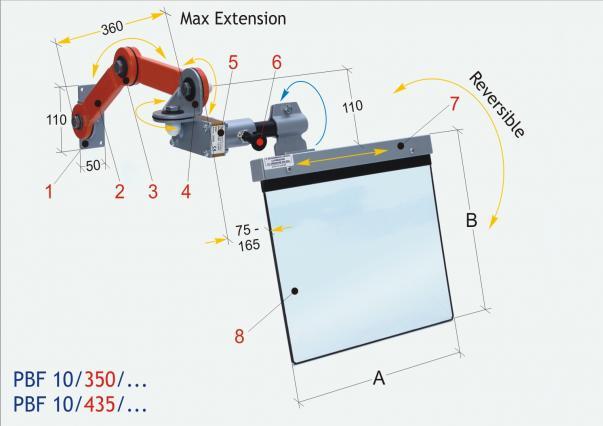

Hydraulic Press Safety Guard Size Guide
  1. Angular anchorage stirrup in pressed steel
  2. Articulated arms in tubular steel
  3. Rubbing articulation with friction disc
  4. Angular junction for vertical turnover of the shield
  5. Main box with 180 degree rotation and safety microswitch with n. 2 NC contacts]
  6. Shield opening release knob
  7. Shield structure in aluminium profile
  8. Shield in plastic shockproof and oil resistant material
Product Code
A
B
KG
PBF 10/350
350
300
5,5
PBF 10/435
400
350
5,8
Hydraulic Press Safety Guard Delivery Information
  • Estimated delivery on this item 1-3 working day

  • Postage and packaging £25.00 (UK mainland only)

  • Please contact us for a quote for all deliveries outside of mainland UK
  • **We also accept telephone orders - all major credit & debit cards accepted**
