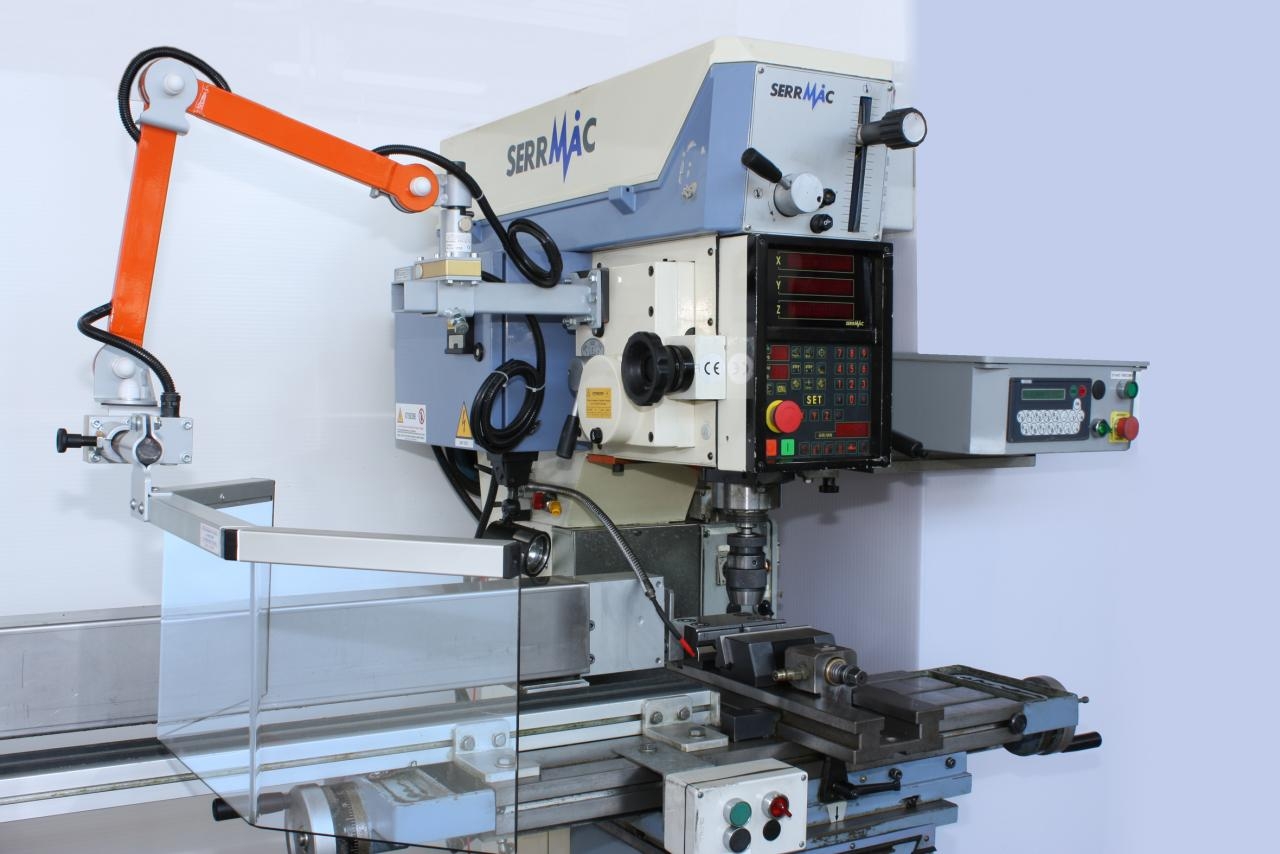

PFR 02/625 (Multi Adjustable Milling Machine Guard)



  • This is our best selling, most preferred Milling machine guard and its always in stock.
  • It's multi-adjustable features enables complete all round protection to the operator whatever the task at hand.
  • The PFR 02 is highly recommended and commonly used to guard Bridgeport Milling Machines.
  • Comes with wide visibility screen, made using top quality polycarbonate ensuring resistance to high impact and excellent visibility.
  • Comes with tubular steel levelling mounting bracket which can be modified if required.
  • The PFR 02 protects the operator from contact with rotating components and protruding debris and coolant.
  • The mounting arm allows the screen to be depth and height adjustable.
  • The PFR 02 has a dual opening system allowing the guard to either be lifted up or swung to the side when access to machine is required.
  • Comes complete with double safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.
  • We can guarantee our "Next generation" standard guards do not disrupt the operators workflow whilst maintaining maximum safety at all times.
  • All "Next Generation" Machine guards are in conformance with P.U.W.E.R (1998) and come with a certificate of conformity.

Technical Specifications

Demonstration of other Milling Machine Guards

Multi Adjustable Milling Machine Guard
CODE ABCDKG
PFR 02/625 62025017040510.4

BUY THIS PRODUCT FROM OUR ONLINE SHOP

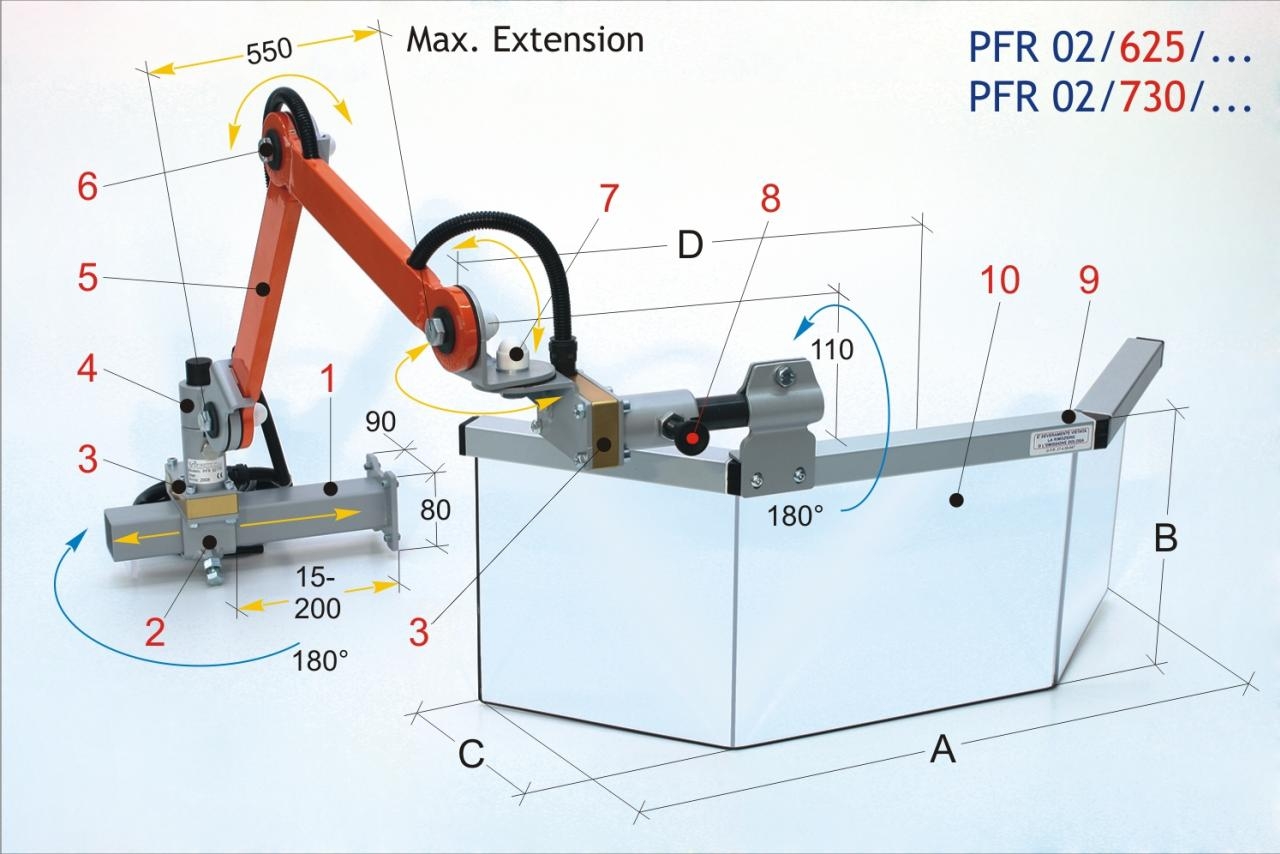

KEY
  1. Levelling anchorage stirrup - in tubular steel
  2. Depth - adjustable safety guard supports
  3. Safety microswitch main boxes - 180 degree rotation - n.2 NC contact
  4. Horizontal adjustment clamp
  5. Articulated arms inn tubular steel
  6. Rubbing articulation with friction disc
  7. Angular junction for the vertical turnover of the shield
  8. Shield opening unlocking knob
  9. Shield structure in aluminium profile
  10. Shield in plastic shockproof and oil - resistant material
